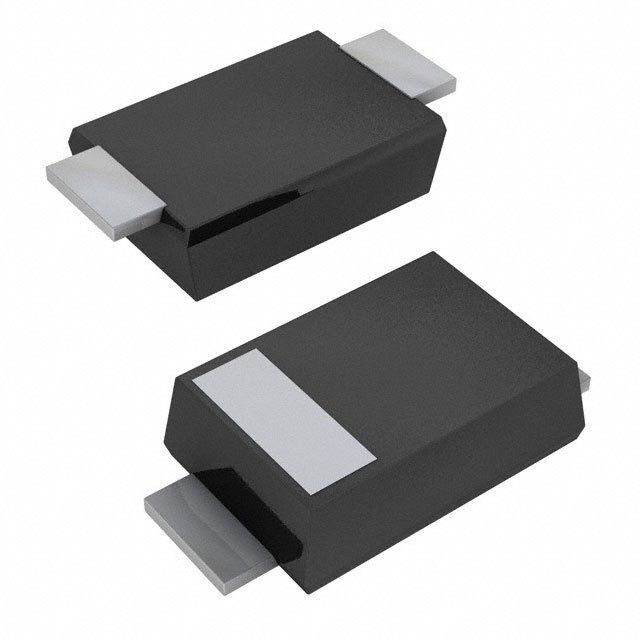

PTVS22VP1UP,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PTVS22VP1UP,115

Part No PTVS22VP1UP,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 22VWM 35.5VC SOD128 / TVS Diode Single Uni-Dir 22V 600W Automotive 2-Pin SOD-128 T/R
Datasheet
PTVS22VP1UP,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Packaging Reel package
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Minimum Breakdown Voltage 24.4V
Maximum Clamping Voltage 35.5V
Current - Peak Pulse (10/1000μs) 16.9A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Operating Temperature Range -55°C ~ 150°C (TA)
Mounting SMD
Package SOD-128
Manufacturer Package CFP5
Win Source Part Number 792731-PTVS22VP1UP,115
Popularity Medium
Supply and Demand Status Balance
Family Name PTVS22VP1UP
Introduction Date May 27, 2010
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PTVS22VP1UP,115 CAD Model

Description

The Nexperia USA Inc. PTVS22VP1UP is a unidirectional zener diode designed for use in circuit protection applications.

  • Series: Automotive, AEC-Q101
  • Package: SOD-128
  • Voltage - Reverse Standoff (typ): 22V
  • Power - Peak Pulse: 600W
  • Operating Temperature Range: -55°C to 150°C
  • Minimum Breakdown Voltage: 24.4V
  • Halogen-Free: Yes
  • EOL Date: 2027
  • Supply and Demand Status: Balanced
