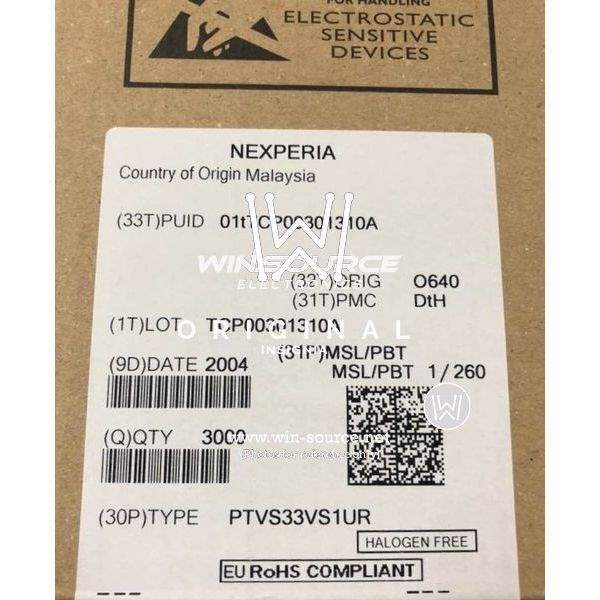

PTVS33VS1UR,115 Nexperia USA Inc. PTVS33VS1UR,115 label picture PTVS33VS1UR,115 real image
Same model may have multiple batches, images only for reference.
PTVS33VS1UR,115 Nexperia USA Inc. PTVS33VS1UR,115 label picture PTVS33VS1UR,115 real image
PTVS33VS1UR,115 Nexperia USA Inc. PTVS33VS1UR,115 label picture PTVS33VS1UR,115 real image
Same model may have multiple batches, images only for reference.

PTVS33VS1UR,115

Part No PTVS33VS1UR,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC SOD123W
Datasheet
PTVS33VS1UR,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 33V
Minimum Breakdown Voltage 36.7V
Max Clamping Voltage 53.3V
Peak Pulse Current(Ippm) 7.5A
Power Dissipation - Pd 400W
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package CFP3
Win Source Part Number 1090639-PTVS33VS1UR,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTVS33VS1UR,115 CAD Model

Description

The Nexperia USA Inc. PTVS33VS1UR,115 is a Zener diode designed for automotive applications.

  • Mounting: SMD
  • Vwm: 33V
  • Breakdown Voltage (Min): 36.7V
  • Clamping Voltage (Max): 53.3V
  • Ippm: 7.5A
  • Pd: 400W
  • Status: Active
  • Temperature Range: -55°C to 150°C (TA)
  • Package: CFP3
