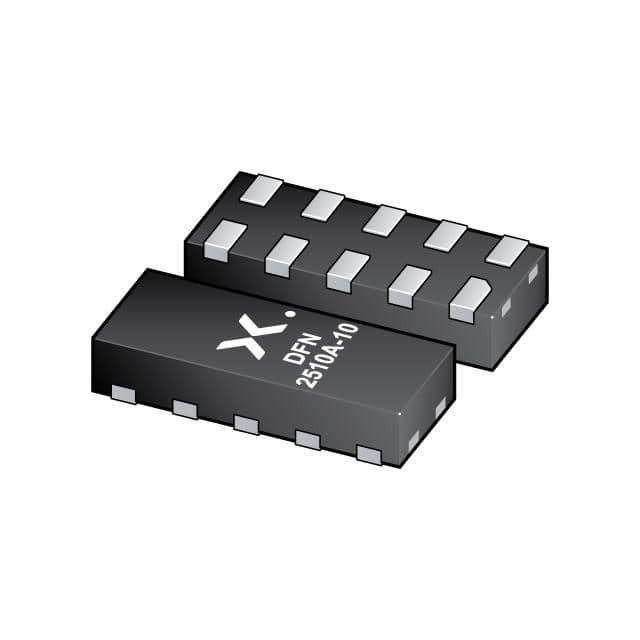

Same model may have multiple batches, images only for reference.

PUSB3AB4Z

Name: PUSB3AB4Z
Brand: Nexperia USA Inc.
SKU: 1086363
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PUSB3AB4Z
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3.3VWM 5VC DFN2510A-10
Datasheet	PUSB3AB4Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	4
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	5V (Typ)
Current - Peak Pulse (10/1000µs)	7A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.17pF @ 1MHz
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	DFN2510A-10
Base Product Number	PUSB3
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1086363-PUSB3AB4Z
Ultra Librarian 3D Model	Ultra Librarian PUSB3AB4Z CAD Model

Alternative Products

Description

The PUSB3AB4Z is a bidirectional zener diode array designed for general purpose applications.

Applications: general purpose
Channels: 4
Reverse Standoff Voltage: 3.3V
Breakdown Voltage: 5.5V
Clamping Voltage: 5V @ typical peak pulse current
Capacitance: 0.17pF @ 1MHz
Peak Pulse Current: 7A
Mounting: surface mountable
Package: 10-XFDFN
Operating Temperature: -40°C to 85°C
Manufacturer: Nexperia USA Inc.
Status: active
