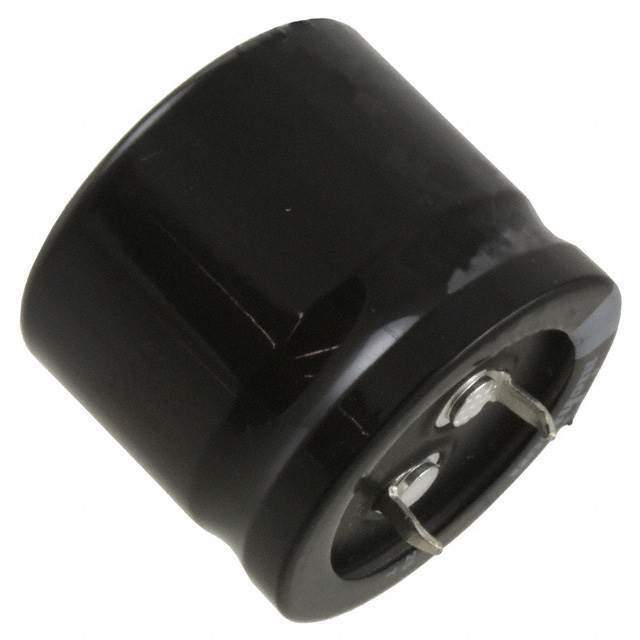

Same model may have multiple batches, images only for reference.

LGN2P102MELB35

Name: LGN2P102MELB35
Brand: Nichicon
SKU: 762325
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LGN2P102MELB35
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 220V SNAP
Datasheet	LGN2P102MELB35 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	LGN
Packaging	Bulk
Capacitance	1000μF
Tolerance	±20%
Voltage Rating	220V
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	2.33A @ 120Hz
Ripple Current - High Frequency	3.495A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.181" Dia (30.00mm)
Height - Seated (Maximum)	1.378" (35.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In
Win Source Part Number	762325-LGN2P102MELB35
Popularity	Medium
Supply and Demand Status	Limited
Family Name	GN
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian LGN2P102MELB35 CAD Model

Alternative Products

Description

The Nichicon LGN series capacitor is a radial, can-snap-in type capacitor.

Capacitance: 1000μF
Voltage Rating: 220V
Polarization: Polarized
Tolerance: ±20%
Ripple Current: 2.33A @ 120Hz, 3.495A @ 50kHz
Lifetime: 3000 hours @ 105°C
Diameter: 1.181 inches (30.00mm)
Height: 1.378 inches (35.00mm)
Packaging: Bulk
Lead Spacing: 0.394 inches (10.00mm)
