Same model may have multiple batches, images only for reference.

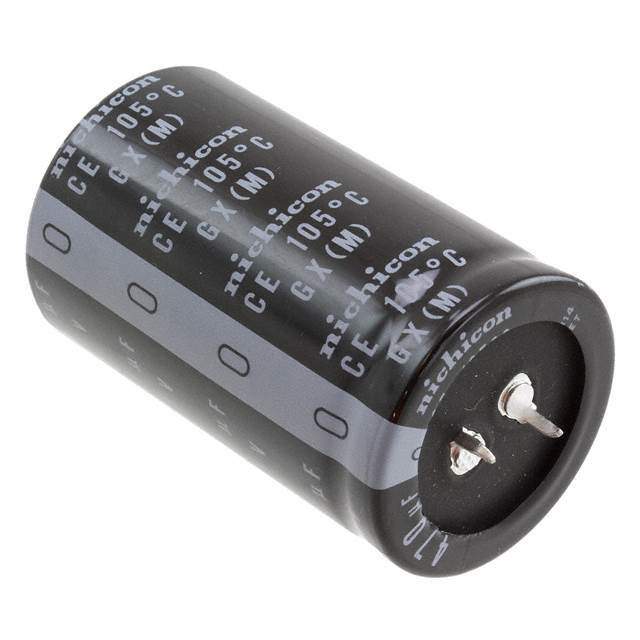

LGX2H471MELC58 Real Image
Same model may have multiple batches, images only for reference.

LGX2H471MELC58

Part No LGX2H471MELC58
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 500V SNAP / 470 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGX
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 500 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.03 A @ 120 Hz
Ripple Current @ High Frequency 2.9029 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.362" (60.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 493-6769
Standard Package 200
Win Source Part Number 1206345-LGX2H471MELC58
Ultra Librarian 3D Model Ultra Librarian LGX2H471MELC58 CAD Model

Description

The LGX2H471MELC58 is an aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 470 μF
  • Voltage Rating: 500 V
  • Tolerance: ±20%
  • Lifetime @ Temperature: 5000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 2.03 A @ 120 Hz
  • Ripple Current @ High Frequency: 2.9029 A @ 50 kHz
  • Polarized: Yes
  • Mounting Type: Through-Hole
  • Temperature Range: -25°C to 105°C
  • Package: Radial, Can - Snap-In
