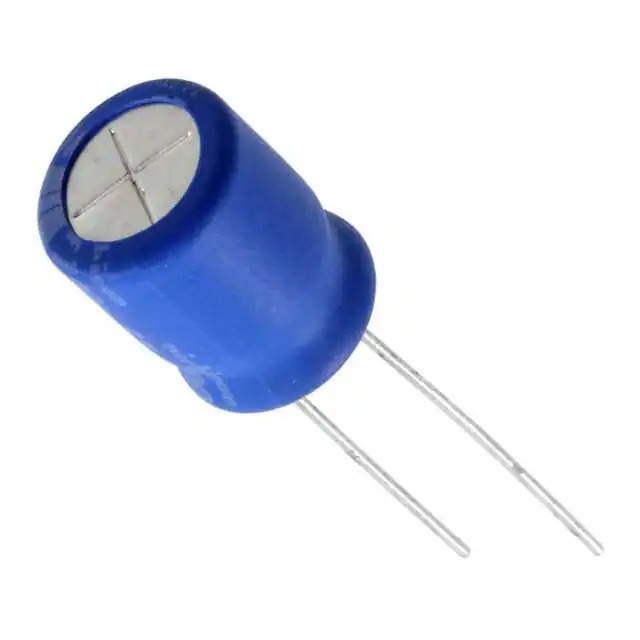

Same model may have multiple batches, images only for reference.

UBW2A220MPD1TD

Name: UBW2A220MPD1TD
Brand: Nichicon
SKU: 1358182
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UBW2A220MPD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 100V RADIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C
Datasheet	UBW2A220MPD1TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UBW
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 135°C
Temperature Range - Operating	-55°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	240 mA @ 120 Hz
Ripple Current @ High Frequency	480 mA @ 100 kHz
Impedance	800 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358182-UBW2A220MPD1TD
Ultra Librarian 3D Model	Ultra Librarian UBW2A220MPD1TD CAD Model

Alternative Products

Description

The 1358182-UBW2A220MPD1TD is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: UBW
Capacitance: 22 μF
Tolerance: ±20%
Voltage - Rated: 100 V
Applications: Automotive
Ripple Current @ Low Frequency: 240 mA @ 120 Hz
Ripple Current @ High Frequency: 480 mA @ 100 kHz
Mounting Type: Through Hole
Package / Case: Radial, Can
Lead Spacing: 0.197" (5.00mm)
Size / Dimension: 0.394" Dia (10.00mm)
Height - Seated (Max): 0.571" (14.50mm)
Lifetime @ Temp.: 2000 Hrs @ 135°C
Polarization: Yes
Impedance: 800 mOhms
Status: Active
REACH Status: Unaffected
