Same model may have multiple batches, images only for reference.

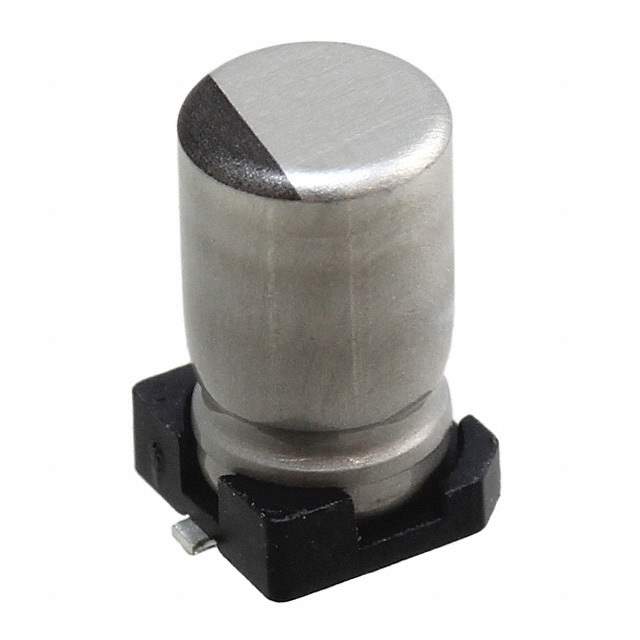

UCB1V2R2MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCB1V2R2MCL1GS

Part No UCB1V2R2MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 35V SMD / 2.2 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Datasheet
UCB1V2R2MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCB
Package Tape & Reel
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 11 mA @ 120 Hz
Ripple Current @ High Frequency 16.5 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338608-UCB1V2R2MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCB1V2R2MCL1GS CAD Model

Description

The UCB series aluminum electrolytic capacitor is a high-quality capacitor that is perfect for use in various applications.

  • Capacitance: 2.2 µF
  • Voltage Rating: 35 V
  • Polarization: Polarized
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height: 0.276" (7.00mm)
  • Packaging: Tape & Reel
  • Standard Package: 1,500
  • Lifetime @ Temperature: 7000 Hrs @ 105°C
  • Manufacturer: Nichicon
  • Applications: General-Purpose
