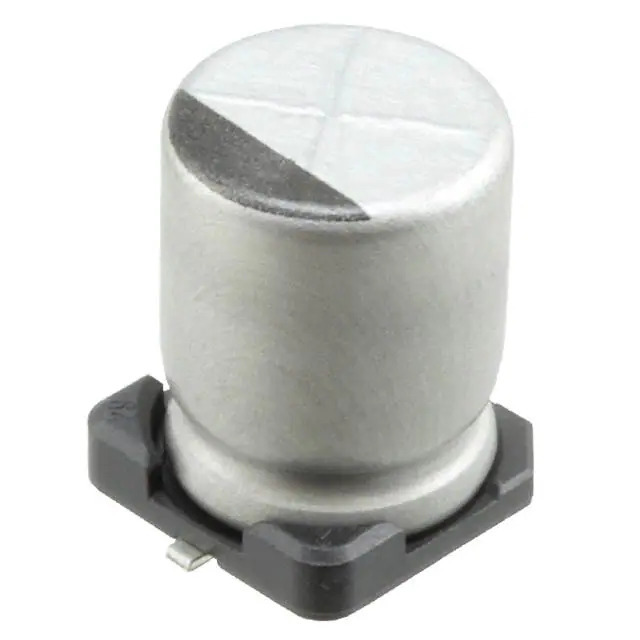

Same model may have multiple batches, images only for reference.

UCD1A471MNL1GS

Name: UCD1A471MNL1GS
Brand: Nichicon
SKU: 1360392
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1A471MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 10V SMD / 470 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet	UCD1A471MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360392-UCD1A471MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1A471MNL1GS CAD Model

Alternative Products

Description

The UCD1A471MNL1GS is a surface mount aluminum electrolytic capacitor from Nichicon.

Series: UCD
Capacitance: 470 µF
Voltage Rating: 10 V
Application: Automotive
Operating Temperature: -55°C to 105°C
Tolerance: ±20%
Ripple Current (Low Frequency): 300 mA @ 120 Hz
Ripple Current (High Frequency): 600 mA @ 100 kHz
Package: Radial, can - SMD
Mounting Type: Surface Mount
Lifetime: 5000 hours @ 105°C
REACH: Unaffected
ECCN: EAR99
