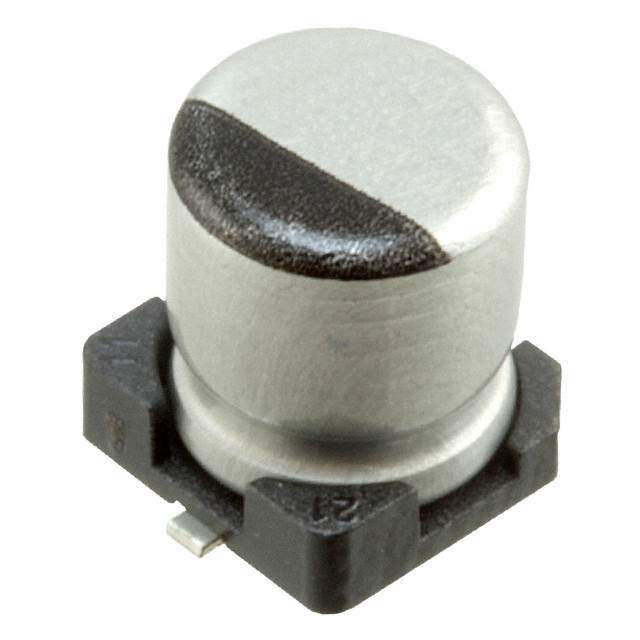

Same model may have multiple batches, images only for reference.

UCD1V100MCL1GS

Name: UCD1V100MCL1GS
Brand: Nichicon
SKU: 1340077
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1V100MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 35V SMD / 10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1V100MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	80 mA @ 120 Hz
Ripple Current @ High Frequency	160 mA @ 100 kHz
Impedance	700 mOhms
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340077-UCD1V100MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1V100MCL1GS CAD Model

Description

The UCD1V100MCL1GS aluminum electrolytic capacitor is a surface mount electronic component that is designed for use in various electronic applications.

Manufacturer:
Product Name: UCD1V100MCL1GS
Type: Aluminum Electrolytic Capacitor
Capacitance: 10µF
Voltage Rating: 35V
Temperature Range: -55°C to 105°C
Mounting Type: Surface Mount
