Same model may have multiple batches, images only for reference.

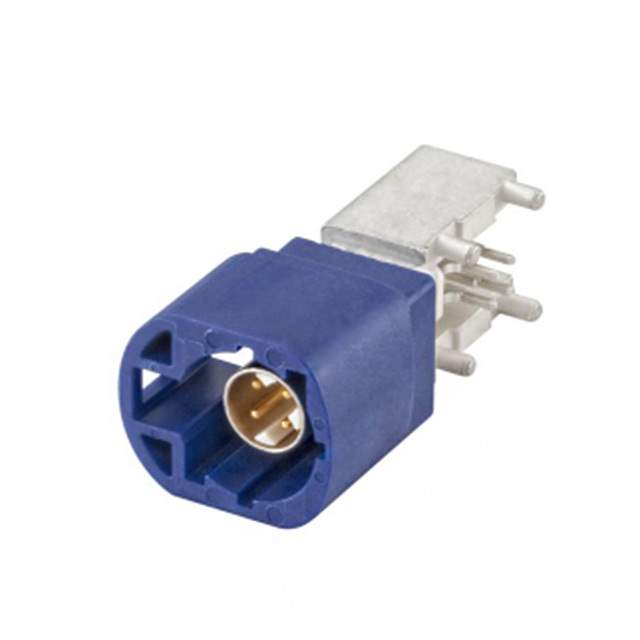

D4S20L-40MA5-C Real Image
Same model may have multiple batches, images only for reference.

D4S20L-40MA5-C

Part No D4S20L-40MA5-C
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM
Datasheet
D4S20L-40MA5-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Manufacturer Rosenberger
Series HSD®
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name D4S20L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 1868-1525-2, 1868-1525-6, 242487, 1868-1525-1
Quantity per package 200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868043-D4S20L-40MA5-C
Ultra Librarian 3D Model Ultra Librarian D4S20L-40MA5-C CAD Model

Description

The Rosenberger HSD® D4S20L series connector is a quadraxial connector plug used in automotive applications. This connector has a male pin contact type and through-hole mounting type. Rosenberger

  • Series: HSD® D4S20L
  • Type: Quadraxial Connector Plug
  • Application: Automotive
  • Contact Gender: Male Pin
  • Mounting Type: Through-Hole
  • Termination: Right-Angle Solder
  • Operating Temperature: -40°C to 105°C
