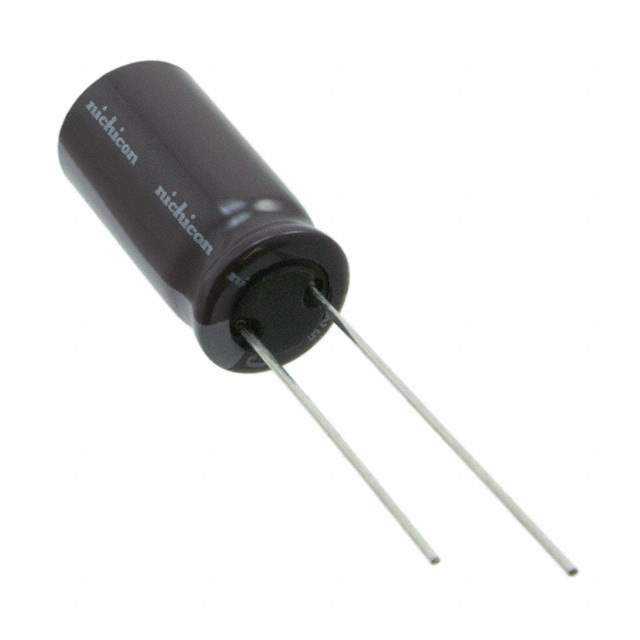

Same model may have multiple batches, images only for reference.

UCS2E220MPD

Name: UCS2E220MPD
Brand: Nichicon
SKU: 988301
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UCS2E220MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 250V RADIAL / 22 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCS
Package	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	250 V
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	250 mA @ 120 Hz
Ripple Current @ High Frequency	500 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-5872
Standard Package	1,400
Win Source Part Number	988301-UCS2E220MPD
Ultra Librarian 3D Model	Ultra Librarian UCS2E220MPD CAD Model

Alternative Products

Description

The UCS series capacitors from Nichicon are designed for general-purpose applications.

Series: UCS
Manufacturer: Nichicon
Capacitance: 22 µF
Voltage Rating: 250 V
Tolerance: ±20%
Supply Status: Short supply
Polarization: Polarized
Package: Radial, can
