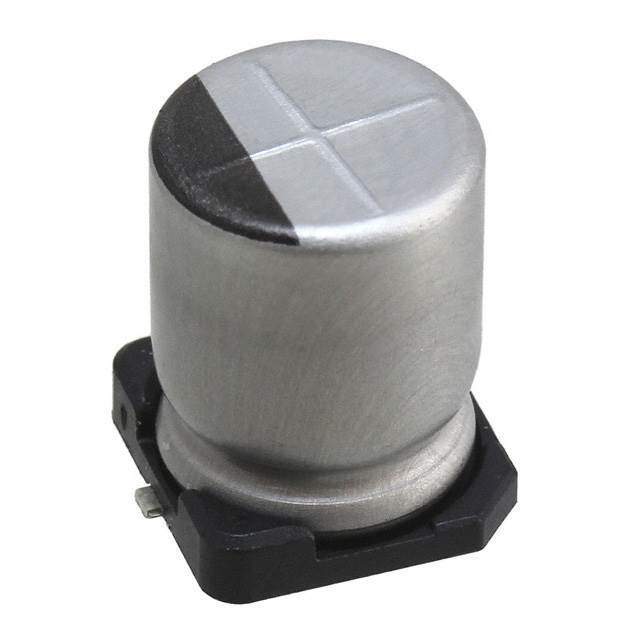

Same model may have multiple batches, images only for reference.

UCW0J471MNL1GS

Name: UCW0J471MNL1GS
Brand: Nichicon
SKU: 1053718
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UCW0J471MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 6.3V SMD / 470 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCW
Package	Tape & Reel
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	220 mOhms
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-9959-6,493-9959-2,493-9959-1
Standard Package	500
Win Source Part Number	1053718-UCW0J471MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCW0J471MNL1GS CAD Model

Alternative Products

Description

The UCW series aluminum electrolytic capacitors are designed for general-purpose applications.

Manufacturer: Nichicon
Series: UCW
Capacitance: 470 µF
Capacitance Tolerance: ±20%
Rated Voltage: 6.3 V
Packaging: Tape and Reel
Mounting Type: SMD (SMT)
Height: 0.413" (10.50mm)
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
ESR: Not Specified
Lifetime @ 105°C: 7000 hours
Polarization: Polar
Package/Case: Radial, Can - SMD
Operating Temperature Range: -25°C to 105°C
Impedance: 220 mOhms
Cross-Reference: EEE-FTJ471XAP, UCM0J471MCL1GS, UWD0J471MCL1GS, EEEFK0J471P, EEEFK0J471AP, and EMZA6R3ADA471MHA0G
