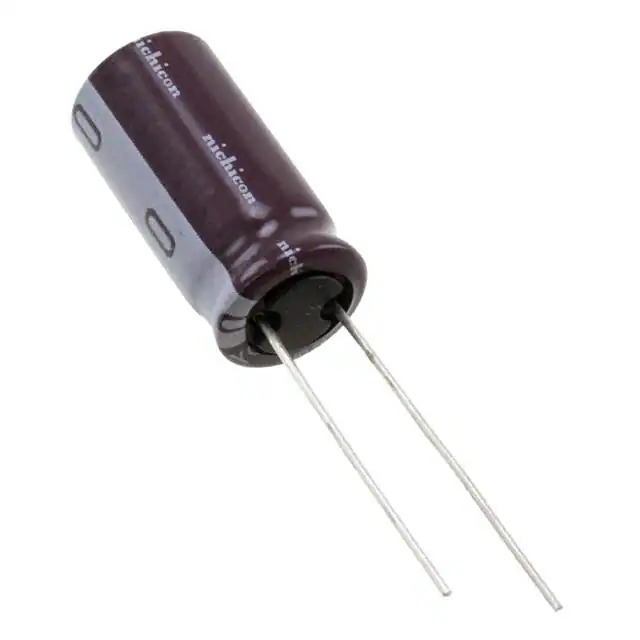

Same model may have multiple batches, images only for reference.
UCY2C560MPD Nichicon
Same model may have multiple batches, images only for reference.

UCY2C560MPD

Part No UCY2C560MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 160V RADIAL / 56 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Datasheet
UCY2C560MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCY
Package Bulk
Product Status Active
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 160 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 380 mA @ 120 Hz
Ripple Current @ High Frequency 760 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357875-UCY2C560MPD
Ultra Librarian 3D Model Ultra Librarian UCY2C560MPD CAD Model

Description

The UCY2C560MPD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UCY series.

  • Capacitance: 56 µF
  • Tolerance: ±20%
  • Voltage - Rated: 160 V
  • Ripple Current @ Low Frequency: 380 mA @ 120 Hz
  • Ripple Current @ High Frequency: 760 mA @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.846" (21.50mm)
  • Lifetime @ Temp.: 12,000 Hrs @ 105°C
  • Polarization: Polar
  • Mounting Type: Through Hole
  • REACH: Unaffected
  • ECCN: EAR99
