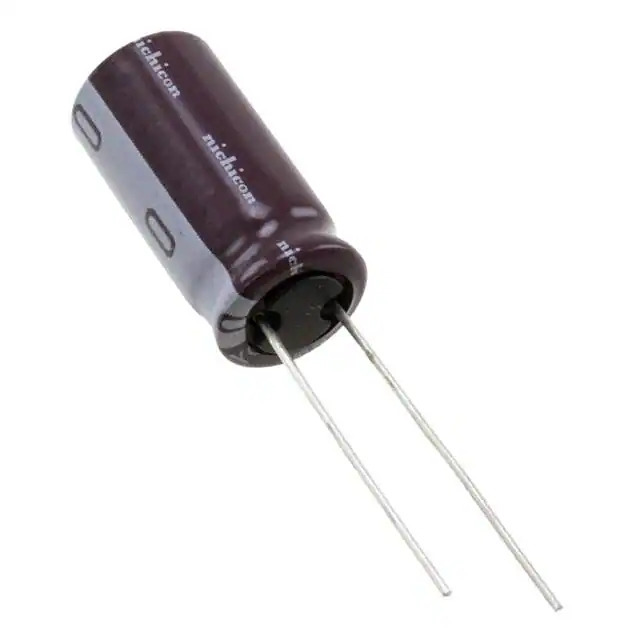

UCY2W100MPD1TD Nichicon
Same model may have multiple batches, images only for reference.

UCY2W100MPD1TD

Part No UCY2W100MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 450V RADIAL / 10 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Datasheet
UCY2W100MPD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCY
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 135 mA @ 120 Hz
Ripple Current @ High Frequency 270 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358051-UCY2W100MPD1TD
Ultra Librarian 3D Model Ultra Librarian UCY2W100MPD1TD CAD Model

Description

The UCY2W100MPD1TD is a radial, can type aluminum electrolytic capacitor from Nichicon's UCY series.

  • Capacitance: 10 µF
  • Tolerance: ±20%
  • Rated Voltage: 450 V
  • Temperature Range: -40°C to 105°C
  • Applications: General-Purpose
  • Ripple Current (Low Frequency): 135 mA @ 120 Hz
  • Ripple Current (High Frequency): 270 mA @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.394" Dia (10.00mm)
  • Seated Height: 0.846" (21.50mm)
  • Mounting Type: Through-Hole
  • Product Status: Active
  • Lifetime: 12000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
