Same model may have multiple batches, images only for reference.

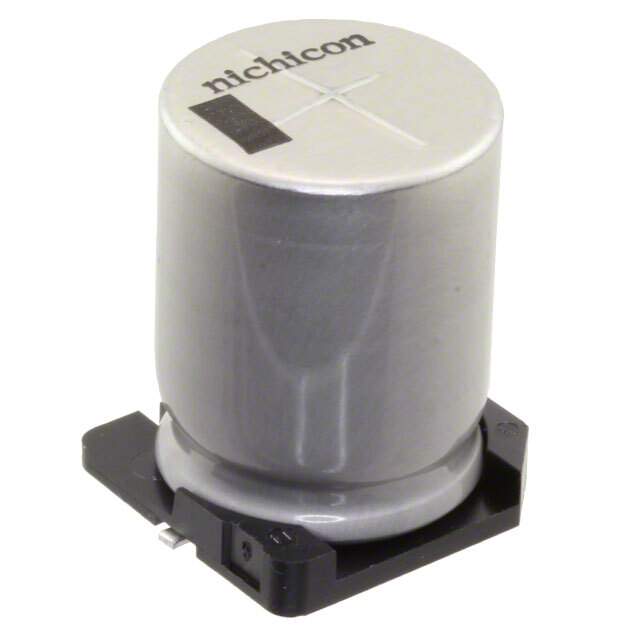

UCZ2A221MNQ1MS Real Image
Same model may have multiple batches, images only for reference.

UCZ2A221MNQ1MS

Part No UCZ2A221MNQ1MS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 100V SMD / 220 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 120mOhm @ 100kHz 4000 Hrs @ 125°C
Datasheet
UCZ2A221MNQ1MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCZ
Package Tape & Reel
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 120mOhm @ 100kHz
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 800 mA @ 120 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.886" (22.50mm)
Surface Mount Land Size 0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341529-UCZ2A221MNQ1MS
Ultra Librarian 3D Model Ultra Librarian UCZ2A221MNQ1MS CAD Model

Description

The UCZ2A221MNQ1MS is a surface mount, tape and reel packaged aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 220μF
  • Voltage Rating: 100V
  • ESR: 120mOhm @ 100kHz
  • Lifetime: 4000 hours @ 125°C
  • Polarization: Polarized
  • Mounting Style: Radial, Can - SMD
  • Surface Mount Land Size: 0.673" L x 0.673" W (17.10mm x 17.10mm)
  • Operating Temperature: -40°C to 125°C
  • Application: General Purpose
