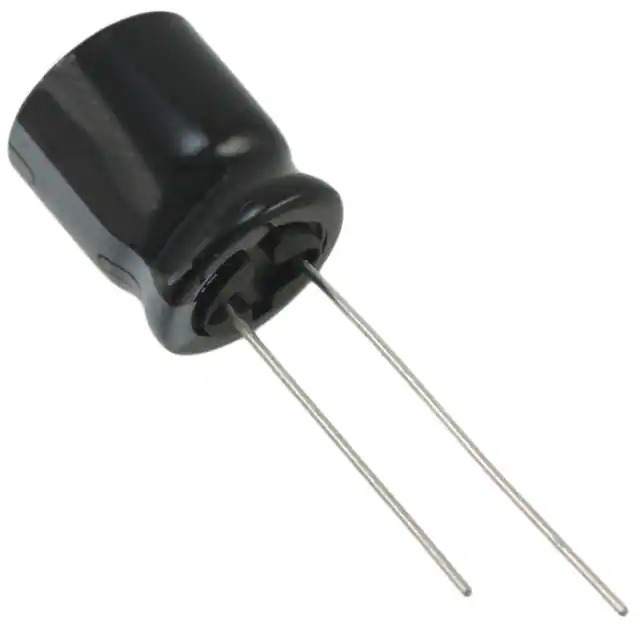

Same model may have multiple batches, images only for reference.
UHE1V122MHD Nichicon
Same model may have multiple batches, images only for reference.

UHE1V122MHD

Part No UHE1V122MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 35V RADIAL / 1200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHE1V122MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Not For New Designs
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.12 A @ 120 Hz
Ripple Current @ High Frequency 2.65 A @ 100 kHz
Impedance 24 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.240" (31.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358287-UHE1V122MHD
Ultra Librarian 3D Model Ultra Librarian UHE1V122MHD CAD Model

Description

The UHE series from Nichicon is a through-hole aluminum electrolytic capacitor. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Capacitance: 1200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 10000 hours @ 105°C
  • Application: General-Purpose
  • Diameter: 12.50mm
  • Height: 31.50mm
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Ripple Current (Low Frequency): 2.12 A @ 120 Hz
  • Ripple Current (High Frequency): 2.65 A @ 100 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarity: Polarized
  • Recommended for New Designs: No
