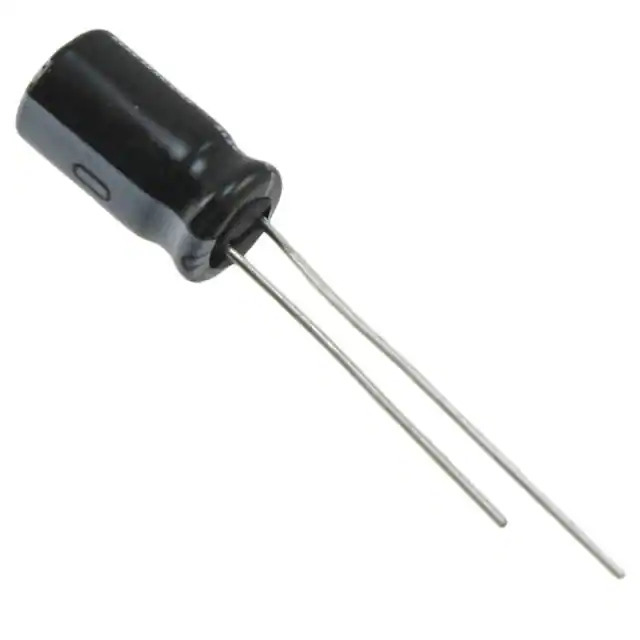

UHE1V560MED1TD Nichicon
Same model may have multiple batches, images only for reference.

UHE1V560MED1TD

Part No UHE1V560MED1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 35V RADIAL / 56 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UHE1V560MED1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Product Status Obsolete
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 238 mA @ 120 Hz
Ripple Current @ High Frequency 340 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357838-UHE1V560MED1TD
Ultra Librarian 3D Model Ultra Librarian UHE1V560MED1TD CAD Model

Description

The UHE1V560MED1TD is an aluminum electrolytic capacitor from Nichicon.

  • Series: UHE
  • Application: General-Purpose
  • Capacitance: 56μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can
  • Mounting: Through-Hole
  • Diameter: 0.248"
  • Height: 0.492"
  • Ripple Current (Low Frequency): 238mA @ 120Hz
  • Ripple Current (High Frequency): 340mA @ 100kHz
  • Lead Spacing: 0.098" (2.50mm)
  • Lifetime: 5000 hours @ 105°C
