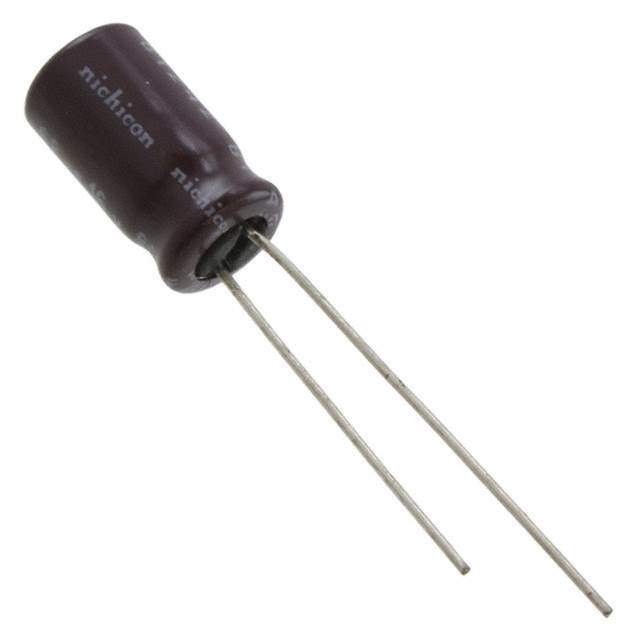

Same model may have multiple batches, images only for reference.

UPJ1V470MED

Name: UPJ1V470MED
Brand: Nichicon
SKU: 1349331
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPJ1V470MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 35V RADIAL / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPJ1V470MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPJ
Package	Bulk
Product Status	Obsolete
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	160 mA @ 120 Hz
Ripple Current @ High Frequency	270 mA @ 10 kHz
Impedance	540 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	4,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349331-UPJ1V470MED
Ultra Librarian 3D Model	Ultra Librarian UPJ1V470MED CAD Model

Alternative Products

Description

The Nichicon UPJ series capacitor is an aluminum electrolytic capacitor that is designed for general purpose applications.

Capacitance: 47 µF
Voltage Rating: 35 V
Tolerance: ±20%
Lead Spacing: 0.098" (2.50mm)
Impedance: 540 mOhms
Lifetime: 2000 hrs @ 105°C
Polarization: Polarized
Ripple Current: 160 mA @ 120 Hz and 270 mA @ 10 kHz
Packaging: Bulk
Standard Package: 4,000 units
