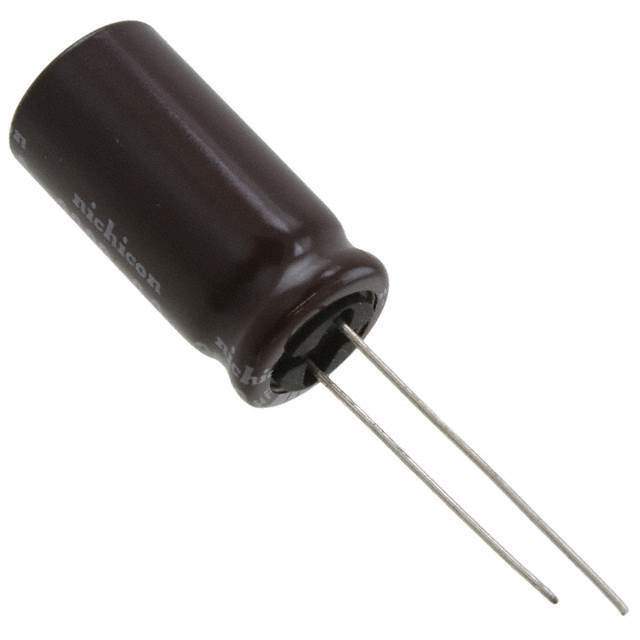

Same model may have multiple batches, images only for reference.

UPM1C152MHD1TO

Name: UPM1C152MHD1TO
Brand: Nichicon
SKU: 988309
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPM1C152MHD1TO
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 16V RADIAL / 1500 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Cut Tape (CT),Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.53 A @ 120 Hz
Ripple Current @ High Frequency	1.7 A @ 10 kHz
Impedance	36 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-12092-1,493-12092-3
Standard Package	500
Win Source Part Number	988309-UPM1C152MHD1TO
Ultra Librarian 3D Model	Ultra Librarian UPM1C152MHD1TO CAD Model

Alternative Products

Description

The Nichicon UPM1C152MHD1TO is a radial, can type capacitor with a capacitance of 1500μF and a voltage rating of 16V.

Capacitance: 1500μF
Voltage Rating: 16V
Tolerance: ±20%
Ripple Current @ low frequency: 1.53 A @ 120 Hz
Ripple Current @ high frequency: 1.7 A @ 10 kHz
Impedance: 36 mOhms
Lifetime: 5000 Hrs @ 105°C
Temperature Range: -55°C to 105°C
Supply and Demand Status: Not applicable
Manufacturer: Nichicon
Win Source Part Number: 988309-UPM1C152MHD1TO
