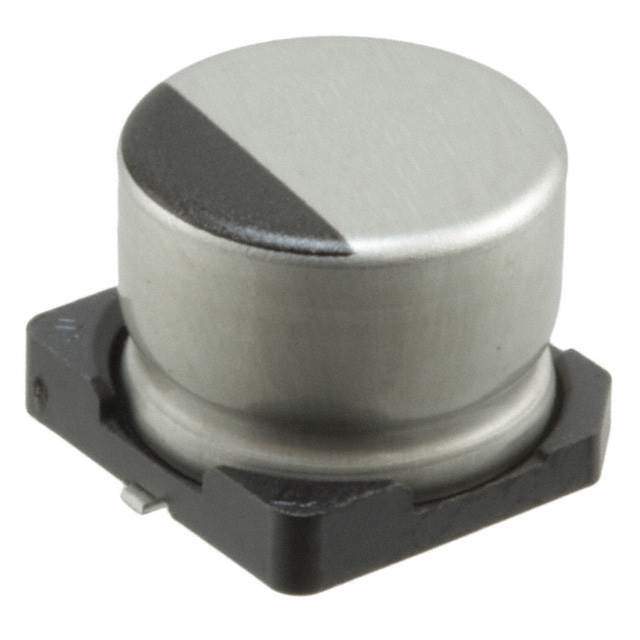

UUR1V470MCL1GS

Name: UUR1V470MCL1GS
Brand: Nichicon
SKU: 1158782
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UUR1V470MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 35V SMD / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUR
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Applications	General Purpose
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	175.35 mA @ 10 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-6240-1,493-6240-2,-493-6240-2,UUR1V470MCL1GS-ND,493-6240-6
Standard Package	1,000
Win Source Part Number	1158782-UUR1V470MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUR1V470MCL1GS CAD Model

Alternative Products

Description

The Nichicon 1158782-UUR1V470MCL1GS is a SMD (SMT) aluminum electrolytic capacitor that has a capacitance of 47 µF and a voltage rating of 35 V.

Capacitance: 47 µF
Voltage Rating: 35 V
Tolerance: ±20%
Ripple Current: 105 mA @ 120 Hz and 175.35 mA @ 10 kHz
Height: 0.256" (6.50mm)
Dimensions: 0.315" Dia (8.00mm)
Supply and Demand Status: Currently balanced
