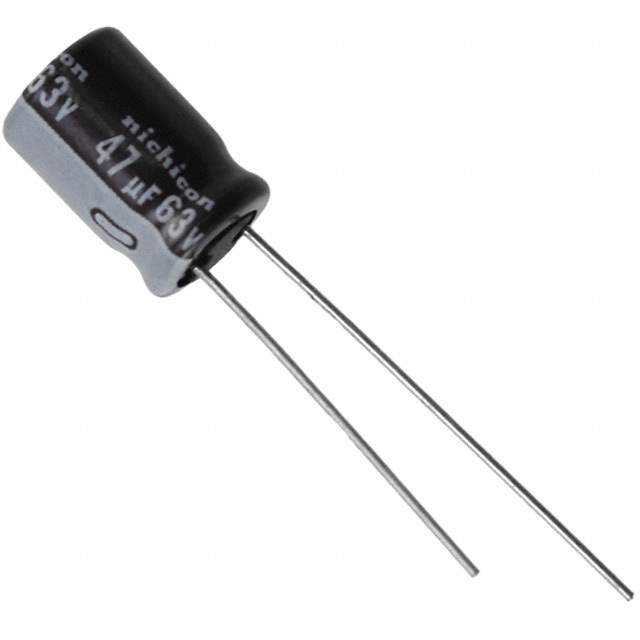

Same model may have multiple batches, images only for reference.

UPM1J470MPD

Name: UPM1J470MPD
Brand: Nichicon
SKU: 1165550
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPM1J470MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 63V RADIAL / 47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	215 mA @ 120 Hz
Ripple Current @ High Frequency	365 mA @ 10 kHz
Impedance	250 mOhms
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.453" (11.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	3,000
Win Source Part Number	1165550-UPM1J470MPD
Ultra Librarian 3D Model	Ultra Librarian UPM1J470MPD CAD Model

Alternative Products

Description

The UPM series aluminum electrolytic capacitor from Nichicon is a general-purpose capacitor with a capacitance of 47 μF and a voltage rating of 63 V.

Tolerance: ±20%
Impedance: 250 mOhms
ESR (Equivalent Series Resistance): Not specified
Lifetime: 3000 hours @ 105°C
Polarization: Polar
Mounting Type: Through hole
Package/Case: Radial, can
Temperature Range: -55°C to 105°C
Ripple Current: 215 mA @ 120 Hz and 365 mA @ 10 kHz
Surface Mount Land Size: Not specified
Design Status: Not for new designs
