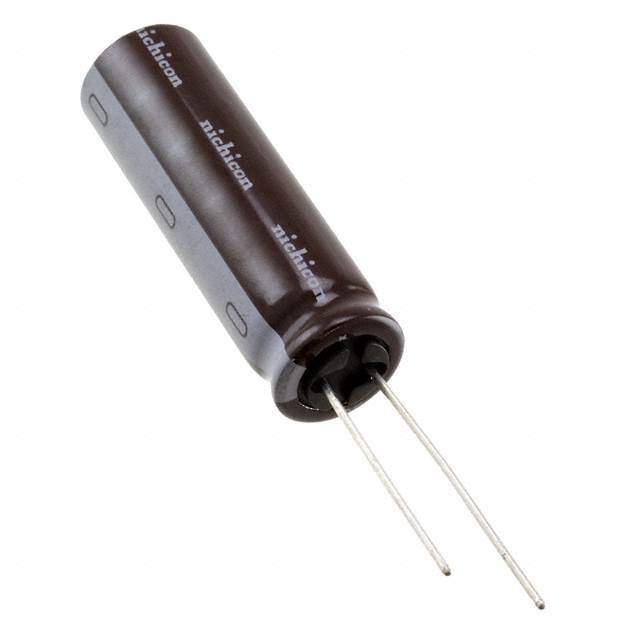

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Bulk
Status Active
Capacitance 47μF
Tolerance ±20%
Voltage Rating 420V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C to 105°C
Applications General Purpose
Ripple Current - Low Frequency 360mA @ 120Hz
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 1.634" (41.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1091379-UPTW6470MHD
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPTW6470MHD CAD Model

Description

The 1091379-UPTW6470MHD is a high-quality capacitor that is designed for general-purpose use from Nichicon.

  • Voltage Rating: 420V
  • Capacitance: 47μF
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Lifetime: 5000 Hrs @ 105°C
  • Mounting Type: Through Hole
