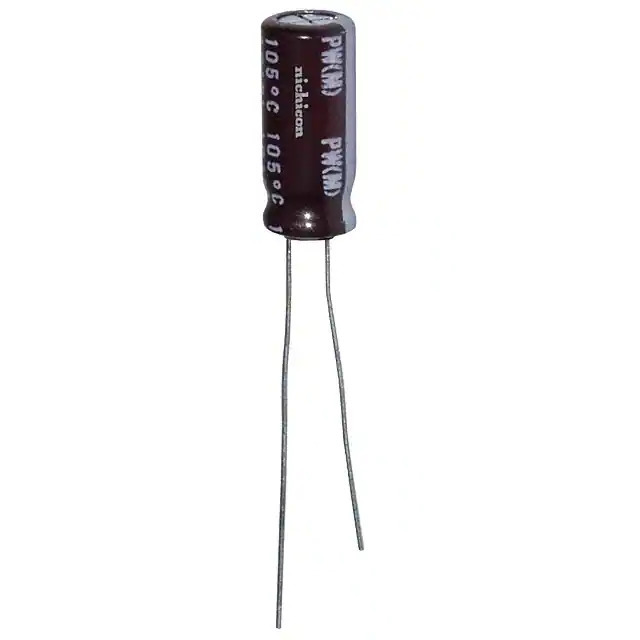

Same model may have multiple batches, images only for reference.
UPW1C181MED Nichicon
Same model may have multiple batches, images only for reference.

UPW1C181MED

Part No UPW1C181MED
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 180UF 20% 16V RADIAL / 180 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UPW1C181MED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Obsolete
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 279.5 mA @ 120 Hz
Ripple Current @ High Frequency 430 mA @ 100 kHz
Impedance 230 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.591" (15.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357944-UPW1C181MED
Ultra Librarian 3D Model Ultra Librarian UPW1C181MED CAD Model

Description

The UPW1C181MED is an aluminum electrolytic capacitor from Nichicon's UPW series.

  • Series: UPW
  • Capacitance: 180μF
  • Tolerance: ±20%
  • Rated Voltage: 16V
  • Maximum ESR: 230 mOhms
  • Application: General Purpose
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Mounting Type: Through-Hole
  • Size: 6.30mm diameter
  • Height: 15.00mm
  • Product Status: Obsolete
  • Packaging: Bulk
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
  • Lead Spacing: 2.50mm
