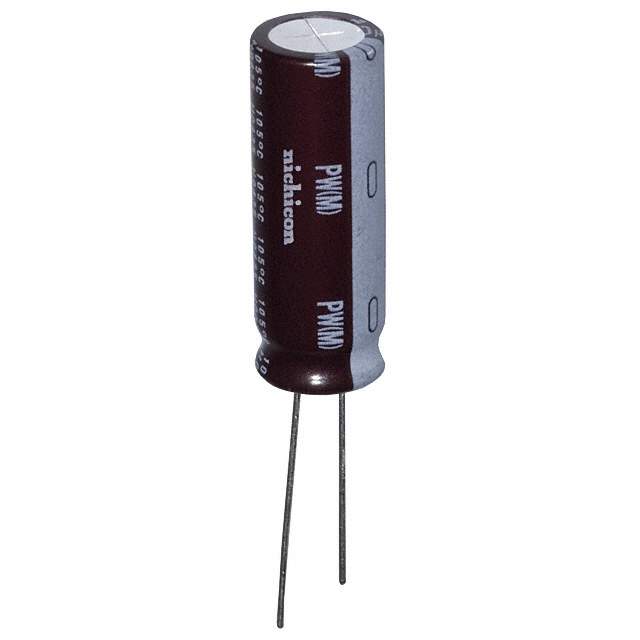

Same model may have multiple batches, images only for reference.

UPW1V152MHD6

Name: UPW1V152MHD6
Brand: Nichicon
SKU: 777723
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1V152MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 35V RADIAL / Cap Aluminum Lytic 1500uF 35V 20% (12.5 X 35.5mm) Radial 7.5mm 2510mA 7000h 105°C Automotive Bulk
Datasheet	UPW1V152MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UPW
Packaging	Bulk
Capacitance	1500μF
Tolerance	±20%
Voltage Rating DC	35V
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	2.134A @ 120Hz
Ripple Current - High Frequency	2.51A @ 100kHz
Impedance	22 mOhm
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Maximum)	1.398" (35.50mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	777723-UPW1V152MHD6
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UPW
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UPW1V152MHD6 CAD Model

Alternative Products

Description

The Nichicon UPW series radial, can-type capacitor is a high-quality electronic component ideal for general applications.

Capacitance: 1500μF
Tolerance: ±20%
Polarization: Polarized
Operating Temperature: -55°C to 105°C
Lead Spacing: 0.197" (5.00mm)
Impedance: 22 mOhm
Ripple Current: 2.134A @ 120Hz, 2.51A @ 100kHz
Height: 1.398" (35.50mm)
Diameter: 0.492" (12.50mm)
Lifetime: 7000 Hrs @ 105°C
Packaging: Bulk
Mounting Type: Through Hole
