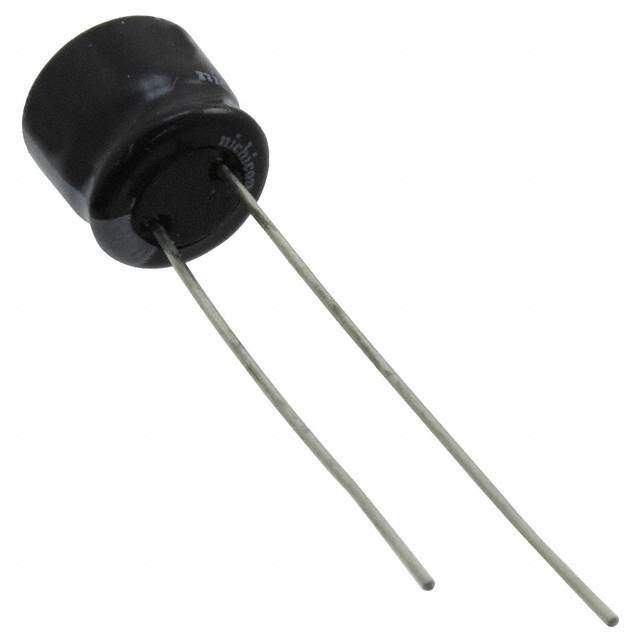

Same model may have multiple batches, images only for reference.

UST1C101MDD

Get a Quote

Part No	UST1C101MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 16V RADIAL / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UST
Package	Bulk
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	107 mA @ 120 Hz
Ripple Current @ High Frequency	160.5 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340123-UST1C101MDD
Ultra Librarian 3D Model	Ultra Librarian UST1C101MDD CAD Model

Alternative Products

Description

The UST series aluminum electrolytic capacitor from Nichicon is a general-purpose capacitor designed for various applications.

Capacitance: 100 µF
Voltage Rating: 16 V
Tolerance: ±20%
Mounting Type: Through Hole
Package / Case: Radial, Can
Lead Spacing: 0.138” (3.50mm)
Height: 0.315” (8.00mm)
Lifetime: 1000 hours @ 105°C
Status: Obsolete
