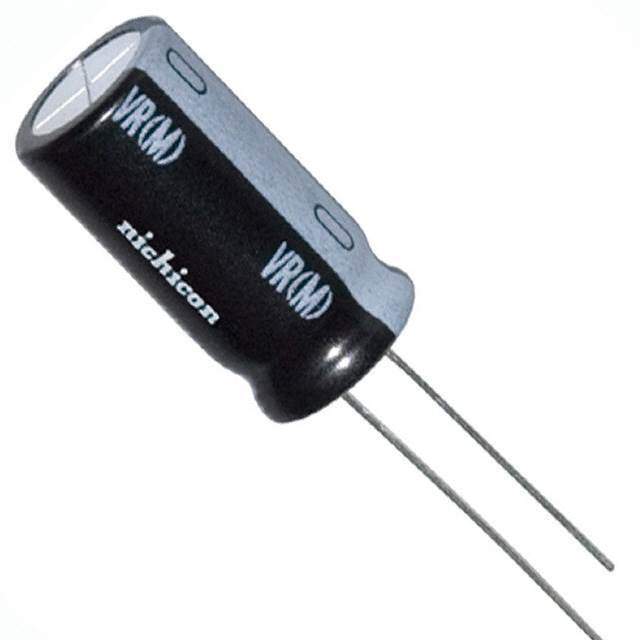

Same model may have multiple batches, images only for reference.

UVR2W220MHD

Name: UVR2W220MHD
Brand: Nichicon
SKU: 969380
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UVR2W220MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 450V RADIAL / 22 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	165 mA @ 120 Hz
Ripple Current @ High Frequency	264 mA @ 10 kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1242
Standard Package	400
Win Source Part Number	969380-UVR2W220MHD
Ultra Librarian 3D Model	Ultra Librarian UVR2W220MHD CAD Model

Alternative Products

Description

The UVR2W220MHD is an aluminum electrolytic capacitor manufactured by Nichicon.

Capacitance: 22 µF
Voltage Rating: 450 V
Tolerance: ±20%
Mounting Type: Through-Hole
Package/Case: Radial, Can
Height: 1.063" (27.00mm)
Diameter: 0.630" (16.00mm)
Ripple Current: 165 mA @ 120 Hz and 264 mA @ 10 kHz
Lifetime: 2000 Hrs @ 85°C
Polarization: Polarized
