Same model may have multiple batches, images only for reference.

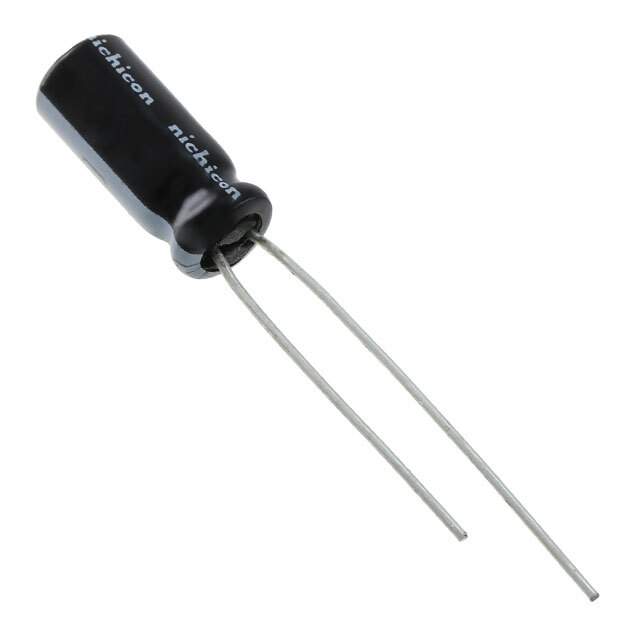

UVZ1E470MDD Real Image
Same model may have multiple batches, images only for reference.

UVZ1E470MDD

Part No UVZ1E470MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V RADIAL / Cap Aluminum Lytic 47uF 25V 20% (5 X 11mm) Radial 2mm 83mA 1000h 105°C Bulk
Datasheet
UVZ1E470MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UVZ
Packaging Bulk
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 25V
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 83mA @ 120Hz
Ripple Current - High Frequency 166mA @ 10kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Maximum) 0.492" (12.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777874-UVZ1E470MDD
Popularity Medium
Supply and Demand Status Limited
Family Name UVZ
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UVZ1E470MDD CAD Model

Description

The Nichicon UVZ1E470MDD is a capacitor with a capacitance of 47μF and a voltage rating of 25V.

  • Capacitance: 47μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Ripple Current: 83mA @ 120Hz
  • Ripple Current: 166mA @ 10kHz
  • Package Type: Radial, Can
  • Height: 0.492" (12.50mm)
  • Diameter: 0.197" (5.00mm)
  • Series: UVZ
  • Applications: General
  • Popularity: Medium
  • Supply and Demand Status: Limited
