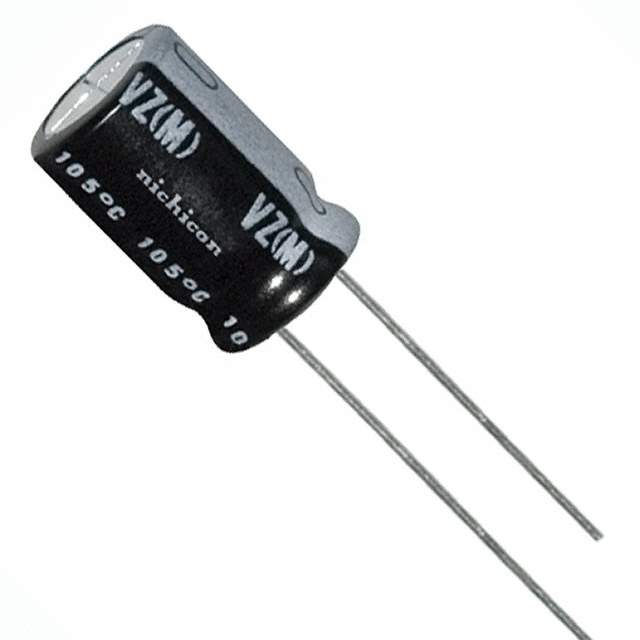

Same model may have multiple batches, images only for reference.

UVZ2D100MPD

Name: UVZ2D100MPD
Brand: Nichicon
SKU: 777879
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UVZ2D100MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 200V RADIAL / Cap Aluminum Lytic 10uF 200V 20% (10 X 12.5mm) Radial 5mm 65mA 1000h 105°C Bulk
Datasheet	UVZ2D100MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UVZ
Packaging	Bulk
Capacitance	10μF
Tolerance	±20%
Voltage Rating DC	200V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	65mA @ 120Hz
Ripple Current - High Frequency	104mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.492" (12.50mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	777879-UVZ2D100MPD
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UVZ
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UVZ2D100MPD CAD Model

Alternative Products

Description

The Nichicon UVZ2D100MPD is a radial, can capacitor with a capacitance of 10μF and a voltage rating of 200V.

Capacitance: 10μF
Voltage Rating: 200V
Tolerance: ±20%
Ripple Current: 65mA @ 120Hz
Ripple Current: 104mA @ 10kHz
Lead Spacing: 0.197" (5.00mm)
Height: 0.492" (12.50mm)
Polarized: Yes
Lifetime: 1000 hours @ 105°C
Applications: General
Packaging: Bulk
