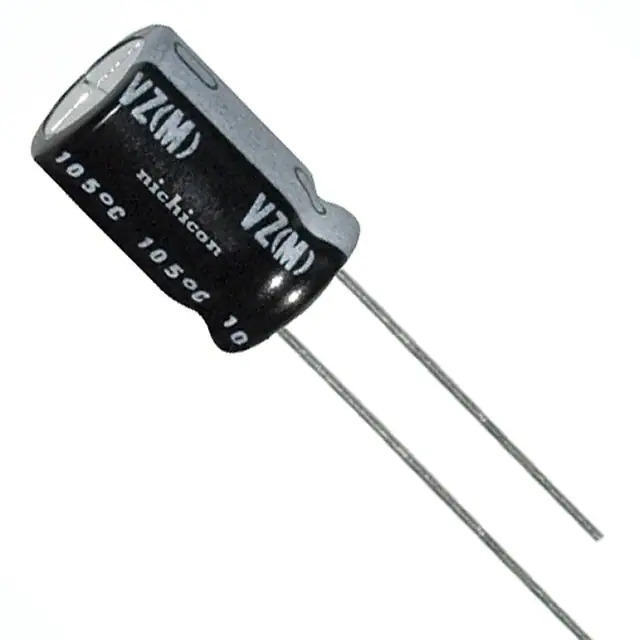

Same model may have multiple batches, images only for reference.

UVZ2W3R3MPD

Name: UVZ2W3R3MPD
Brand: Nichicon
SKU: 1358153
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UVZ2W3R3MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3.3UF 20% 450V RADIAL / 3.3 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UVZ2W3R3MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVZ
Package	Bulk
Product Status	Not For New Designs
Capacitance	3.3 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	31 mA @ 120 Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358153-UVZ2W3R3MPD
Ultra Librarian 3D Model	Ultra Librarian UVZ2W3R3MPD CAD Model

Alternative Products

Description

The UVZ2W3R3MPD is an aluminum electrolytic capacitor manufactured by Nichicon. It is part of the UVZ series and has a capacitance of 3.3µF.

Series: UVZ
Capacitance: 3.3µF
Operating Temperature: -25°C ~ 105°C
Voltage Rating: 450V
Tolerance: ±20%
Ripple Current: 31mA @ 120Hz
Mounting Type: Through Hole
Package / Case: Radial, Can
Lead Spacing: 0.197" (5.00mm)
Size / Dimension: 0.394" Dia (10.00mm)
Height - Seated (Max): 0.689" (17.50mm)
Polarization: Polar
Applications: General Purpose
