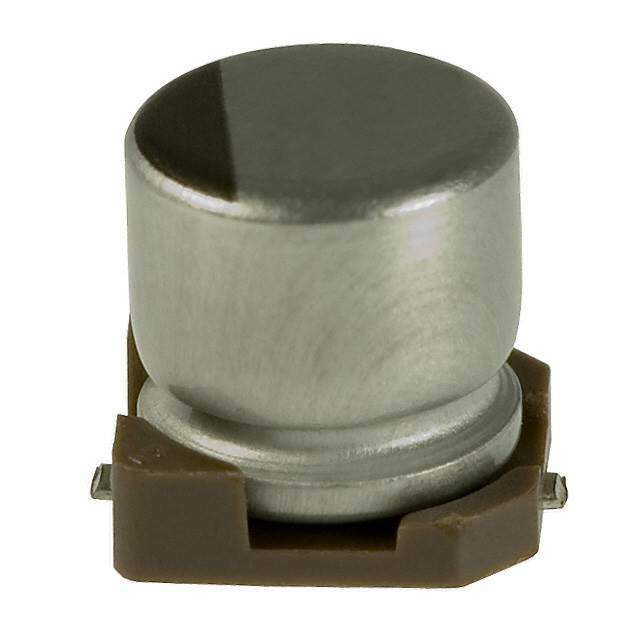

Same model may have multiple batches, images only for reference.

UWX1V100MCL1GB

Name: UWX1V100MCL1GB
Brand: Nichicon
SKU: 1003777
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWX1V100MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	Smd Aluminium Electrolytic Capacitor, Mcesl Series, 10 F, 35 V, Radial Can - Smd, 5 Mm Rohs Compliant: Yes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Capacitance	10 µF
Mounting	SMD (SMT)
Termination	SMD/SMT
Contact Plating	Tin
Diameter	5 mm
Dielectric Material	Aluminium
Dissipation Factor	0.12 %
Height	5.4 mm
Height - Seated (Max)	5.4102 mm
Lead Diameter	800 µm
Lead Free	Yes
Lead Pitch	1.3 mm
Leakage Current	3 µA
Length	5.4 mm
Life (Hours)	2000 hours
Maximum Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Pins	2
Packaging	Cut Tape
Polarity	Polar
Radiation Hardening	No
REACH SVHC	No SVHC
Ripple Current	29 mA
Ripple Current (AC)	29 mA
RoHS	Compliant
Schedule B	8532220020
Tolerance	20 %
Voltage	35 V
Voltage Rating	35 V
Voltage Rating (AC)	35 V
Voltage Rating (DC)	35 V
Weight	4.535924 g
Width	5.3 mm
Win Source Part Number	1003777-UWX1V100MCL1GB
Categories	Aluminum Capacitors
Manufacturer	Nichicon
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian UWX1V100MCL1GB CAD Model

Alternative Products

Description

The Nichicon 1003777-UWX1V100MCL1GB is a surface mount aluminum capacitor with a capacitance of 10 µF and a voltage rating of 35 V.

Component Type: Aluminum Capacitor
Mounting Type: Surface Mount
Capacitance: 10 µF
Voltage Rating: 35 V
Tolerance: 20%
Polarity: Polar
Leakage Current: 3 µA
Ripple Current: 29 mA
Dissipation Factor: 0.12%
Maximum Operating Temperature: 85 °C
Minimum Operating Temperature: -40 °C
Supply and Demand Status: Shortage
Manufacturer Homepage: www.nichicon.co.jp
