8E2011-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

8E2011-Z

Part No 8E2011-Z
Manufacturer Nidec Copal Electronics
Catalog Toggle Switches

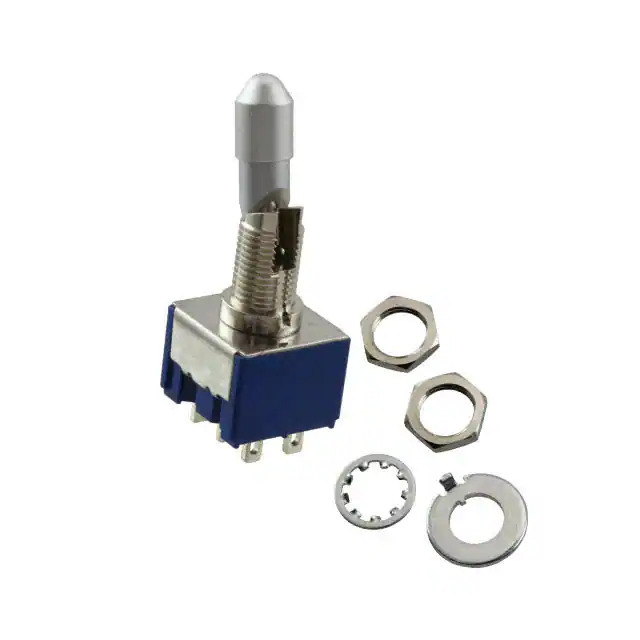

Description SWITCH TOGGLE DPDT 6A 125V / Toggle Switch DPDT Panel Mount
Datasheet
8E2011-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Nidec Components Corporation
Series 8E
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Locking Lever
Actuator Length 16.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Sealed - Flux Protection
Temperature Range - Operating -30°C ~ 85°C
Actuator Material -
Electrical Life 50,000 Cycles
Base Product Number 8E2011
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375996-8E2011-Z
Ultra Librarian 3D Model Ultra Librarian 8E2011-Z CAD Model

Description

The 8E2011-Z is a toggle switch manufactured by Nidec Components Corporation.

  • Circuit: DPDT
  • Current Rating: 6A (AC) and 4A (DC)
  • Voltage Rating: 125V (AC) and 30V (DC)
  • Actuator Type: Locking Lever
  • Termination Style: Solder Lug
  • Mounting Type: Panel Mount
  • Panel Cutout: 6.50mm diameter
  • Electrical Life: 50,000 cycles
  • Sealed: Flux Protection
  • Operating Temperature: -30°C to 85°C
  • Product Status: Active
  • Series: 8E
  • Applications: Industrial and Automotive Applications
