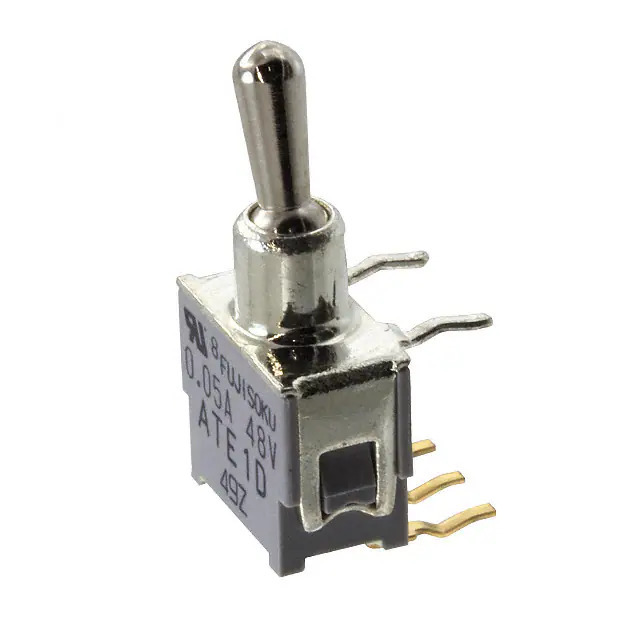

ATE1D-6M3-10-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

ATE1D-6M3-10-Z

Part No ATE1D-6M3-10-Z
Manufacturer Nidec Copal Electronics
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 50MA 48V
Datasheet
ATE1D-6M3-10-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Nidec Components Corporation
Series ATE
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 50mA (AC/DC)
Voltage Rating - AC 48 V
Voltage Rating - DC 48 V
Actuator Type Standard Round
Actuator Length 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions -
Bushing Thread Unthreaded
Ingress Protection -
Features Washable
Temperature Range - Operating -20°C ~ 85°C
Actuator Material -
Electrical Life 50,000 Cycles
Base Product Number ATE1D
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375994-ATE1D-6M3-10-Z
Ultra Librarian 3D Model Ultra Librarian ATE1D-6M3-10-Z CAD Model

Description

The ATE1D-6M3-10-Z is a toggle switch from Nidec Components Corporation.

  • Circuit: SPDT
  • Current Rating: 50mA AC/DC
  • Voltage Rating: 48V AC and 48V DC
  • Actuator Type: Standard Round
  • Termination Style: PC Pin
  • Mounting Type: Through-Hole, Right Angle
  • Mechanical Life: 50,000 cycles
  • Operating Temperature: -20°C to 85°C
  • Series: ATE
  • Packaging: Tray
  • Product Status: Active
  • Washable: Yes
