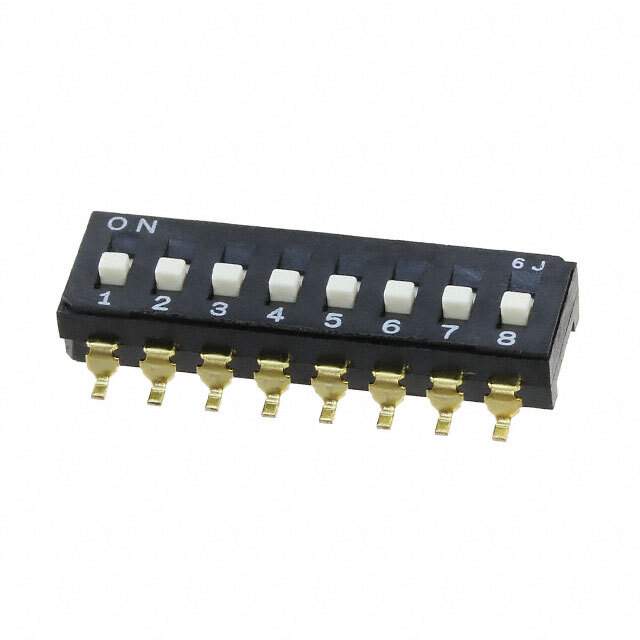

CFS-0802TB Real Image
Same model may have multiple batches, images only for reference.

CFS-0802TB

Part No CFS-0802TB
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP 8POS SPST 100MA 6V  /  Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet
CFS-0802TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Nidec Copal Electronics
Series CFS
Package Tape & Reel
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.858" (21.80mm)
Electrical Life 1,000 Cycles
Base Product Number CFS-0802
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 563-CFS-0802CT,563-CFS-0802TR,563-CFS-0802DKR
Standard Package 800
Win Source Part Number 963280-CFS-0802TB
Ultra Librarian 3D Model Ultra Librarian CFS-0802TB CAD Model

Description

The CFS-0802TB manufactured by Nidec Copal Electronics is a DIP switch with a circuit of SPST and a number of positions of 8. Nidec Copal Electronics is the manufacturer.

  • Circuit: SPST
  • Positions: 8
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull wing
  • Contact Finish: Gold
  • Contact Material: Copper alloy
  • Mounting: SMD (SMT)
  • Package: Tape & reel
  • Voltage Rating: 6VDC
  • Height Above Board: 0.169" (4.30mm)
  • Length: 0.858" (21.80mm)
  • Standard Package: 800
  • Actuator Type: Slide (standard)
  • Actuator Level: Raised
  • Temperature Range: -40°C ~ 85°C
  • Electrical Life: 1,000 cycles
  • Washable: No
  • ECCN: EAR99
