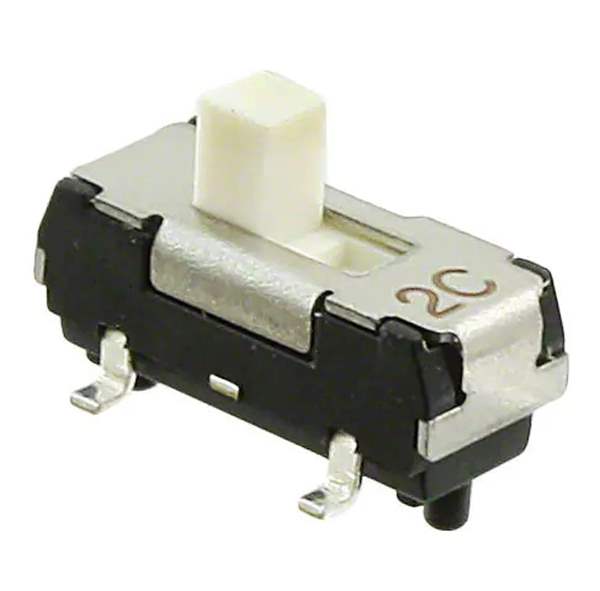

Same model may have multiple batches, images only for reference.

CL-SB-12B-02T

Name: CL-SB-12B-02T
Brand: Nidec Copal Electronics
SKU: 1376238
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CL-SB-12B-02T
Manufacturer	Nidec Copal Electronics
Catalog	Slide Switches
Description	SWITCH SLIDE SPDT 200MA 12V
Datasheet	CL-SB-12B-02T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Slide Switches
Mfr	Nidec Components Corporation
Series	CL-SB
Package	Tape & Reel
Product Status	Active
Circuit	SPDT
Contact Timing	Non-Shorting (BBM)
Switch Function	On-On
Current Rating (Amps)	200mA (DC)
Voltage Rating - DC	12 V
Actuator Type	Standard
Actuator Length	2.00mm
Contact Material	Copper
Contact Finish	Gold
Mounting Type	Surface Mount
Termination Style	Gull Wing
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyamide (PA), Nylon
Switch Travel	2.00mm
Mechanical Life	-
Electrical Life	10,000 Cycles
Operating Force	153gf
Base Product Number	CL-SB-12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9050
Win Source Part Number	1376238-CL-SB-12B-02T
Ultra Librarian 3D Model	Ultra Librarian CL-SB-12B-02T CAD Model

Alternative Products

Description

The 1376238-CL-SB-12B-02T is a surface mount slide switch from Nidec Components Corporation's CL-SB series.

Circuit: SPDT
Voltage Rating: 12V DC
Mounting Type: Surface Mount
Actuator Type: Standard
Termination Style: Gull Wing
Current Rating: 200mA (DC)
Operating Force: 153gf
Switch Travel: 2.00mm
Actuator Length: 2.00mm
Contact Material: Copper with Gold Finish
Mechanical Life: -
Electrical Life: 10,000 Cycles
Status: Active
