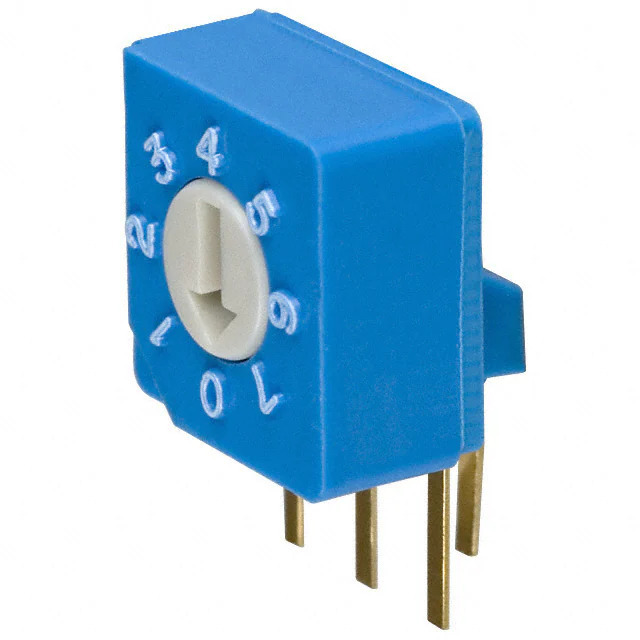

Same model may have multiple batches, images only for reference.
S-8031 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

S-8031

Part No S-8031
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SW ROTARY DIP OCT COMP 100MA 5V
Datasheet
S-8031 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series S-8000
Package Bulk
Product Status Active
Circuit Octal Complement
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.283" (7.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -25°C ~ 70°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.283" (7.20mm)
Mechanical Life -
Electrical Life 10,000 Steps
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376123-S-8031
Ultra Librarian 3D Model Ultra Librarian S-8031 CAD Model

Description

The 1376123-S-8031 is a through-hole, right angle DIP switch with 8 positions.

  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature: -25°C to 70°C
  • Status: Active
  • Contact Finish: Gold
  • Height Above Board: 0.283" (7.20mm)
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
  • Mechanical Life: 10,000 steps
  • Electrical Life: 10,000 steps
  • Washable: Yes
