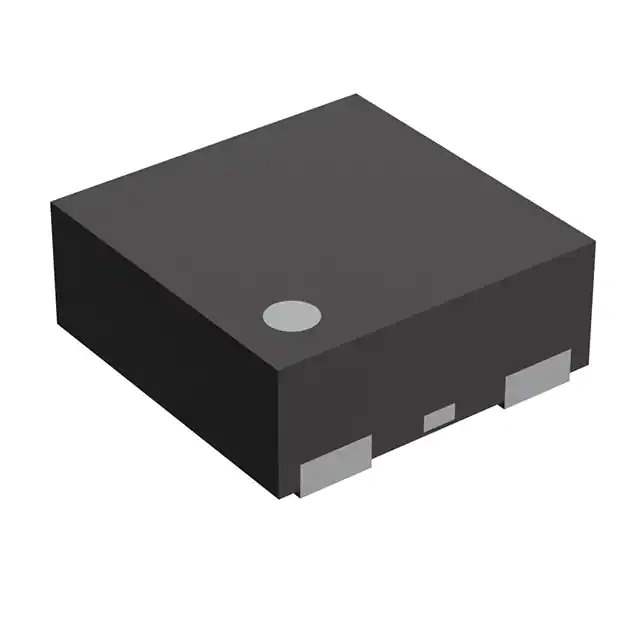

RP109L111B-TR Real Image
Same model may have multiple batches, images only for reference.

RP109L111B-TR

Part No RP109L111B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 1.1V 150MA DFN1010-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP109x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.1V
Voltage Dropout (Max) 0.82V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 70 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 4-XDFN Exposed Pad
Supplier Device Package DFN1010-4
Base Product Number RP109
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 756145-RP109L111B-TR
Ultra Librarian 3D Model Ultra Librarian RP109L111B-TR CAD Model

Description

The RP109x series is a power management integrated circuit (IC) that belongs to the linear voltage regulators category.

  • Output Voltage: 1.1V
  • Maximum Output Current: 150mA
  • Output Configuration: Positive
  • Input Voltage: Up to 5.25V
  • Mounting Type: Surface Mount
  • Package: 4-XDFN exposed pad
  • Operating Temperature: -40°C to 85°C
  • Protection: Against over current
  • Quiescent Current: 70µA
  • Manufacturer: Nisshinbo Micro Devices Inc.
