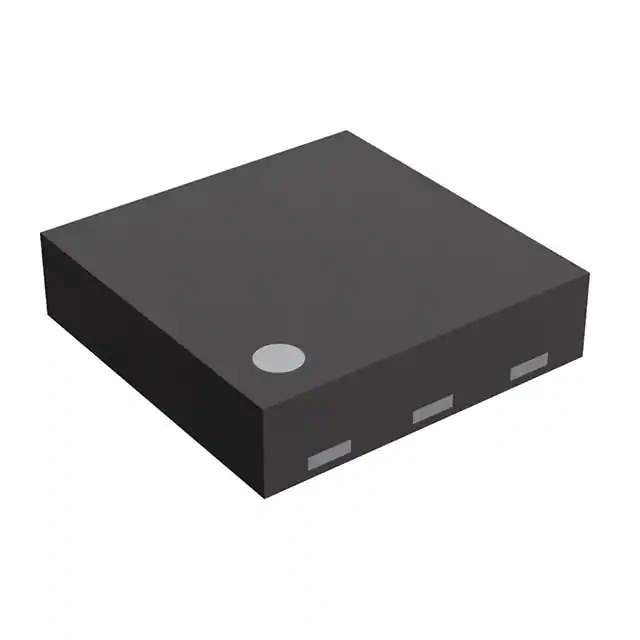

RP503L122A-TR

Name: RP503L122A-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: 748811
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RP503L122A-TR
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	600MA PWM/VFM STEP-DOWN DCDC CON
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr	Nisshinbo Micro Devices Inc.
Series	RP503x
Package	Tape & Reel
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Current - Output	600mA
Frequency - Switching	2MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	DFN1616-6
Base Product Number	RP503
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	748811-RP503L122A-TR
Ultra Librarian 3D Model	Ultra Librarian RP503L122A-TR CAD Model

Alternative Products

Description

The RP503L122A-TR is a DC-DC switching regulator integrated circuit. It is part of the Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators category of integrated circuits.

Series: RP503x
Output Type: Fixed
Regulator Type: Step-down
Switching Frequency: 2MHz
Current Output: 600mA
Voltage Input: 2.5V to 5.5V
Voltage Output: 1.2V
Mounting Type: Surface Mount
Package: 6-XFDFN Exposed Pad
Manufacturer: Nisshinbo Micro Devices Inc.
Status: Active
