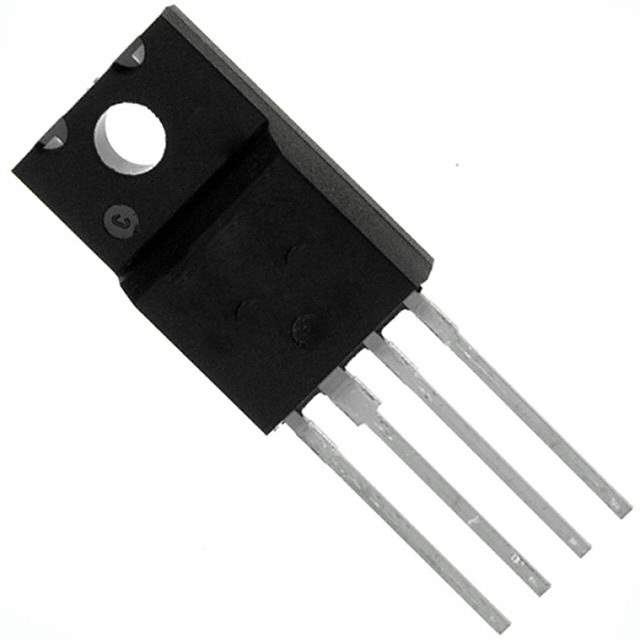

NJM2397F Real Image
Same model may have multiple batches, images only for reference.

NJM2397F

Part No NJM2397F
Manufacturer NJR Corporation/NJRC
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 1.5V to 20V 1.5A 4-Pin(4+Tab) TO-220F / IC REG LDO ADJ 1.5A TO220F-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 20V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1.5A
Operating Supply Current 5mA
PSRR 55dB (120Hz)
Control Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 20 V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting Through Hole
Case / Package TO-220F-4L
Win Source Part Number 060253-NJM2397F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 50
Family Name NJM2397
Introduction Date August 26, 2002
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian NJM2397F CAD Model

Description

The NJR Corporation/NJRC NJM2397F is a positive adjustable voltage regulator designed for use in various applications such as motor control, display drivers, and power switching circuits. It has a high popularity due to its reliability and performance. The supply and demand status is balanced, ensuring that you can obtain this product without difficulty.

  • Regulator Type: Positive Adjustable
  • Applications: Motor control, display drivers, and power switching circuits
  • Output Voltage Range: 1.5 V to 20 V
  • Protection Features: Over current, over temperature, and over voltage
  • Manufacturer: NJR Corporation/NJRC
