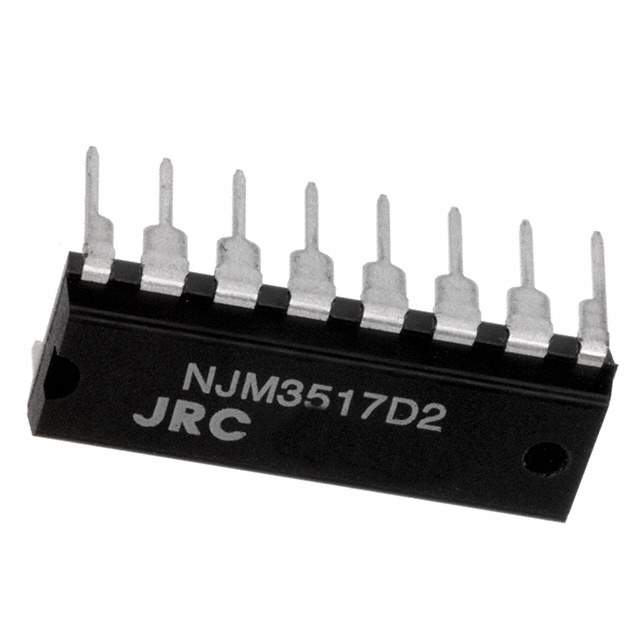

NJM3517D2 Real Image
Same model may have multiple batches, images only for reference.

NJM3517D2

Part No NJM3517D2
Manufacturer NJR Corporation/NJRC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 16DIP
Datasheet
NJM3517D2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Tube/Rail
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Step Resolution 1, 1/2
Applications General Purpose
Output Current 350mA
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 40 V
Temperature Range - Operating -20°C to 125°C (TJ)
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 255427-NJM3517D2
Family Name NJM3517
Introduction Date March 29, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian NJM3517D2 CAD Model

Description

The NJM3517D2 is a bipolar technology-based driver IC that is fully integrated with a control and power stage.

  • Operating Temperature: -20°C to 125°C (TJ)
  • Supply Voltage Range: 4.75V to 5.25V
  • Popularity: high
  • Supply and Demand Status: limited
  • Ideal for: stepper motors
  • Step Resolution: 1, 1/2
  • Case/Package: 16-DIP
  • Packaging: tube/rail
  • Alternative Parts: TB62200AF(EL), TA7774P(F,5,J), and TA7774P(5,J)
