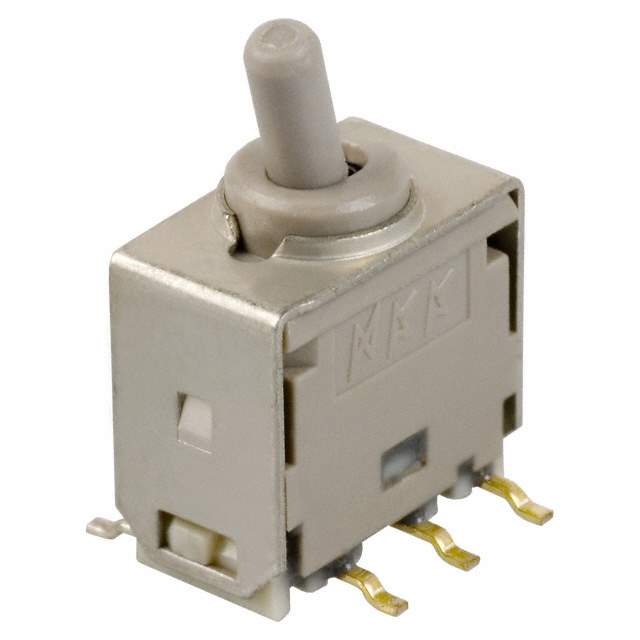

G3T12AP Real Image
Same model may have multiple batches, images only for reference.

G3T12AP

Part No G3T12AP
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 28V  /  Toggle Switch SPDT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series G3T
Package Tray
Mounting SMD (SMT)
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 3.81mm
Illumination Non-Illuminated
Termination Style Gull Wing
Bushing Thread Unthreaded
Features Process Sealed
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyphenylene Sulfide (PPS)
Electrical Life 50,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 360-1026INACTIVE,360-1026,360-1774,360-1026-ND,G3T12AP-RO
Standard Package 1
Win Source Part Number 1022663-G3T12AP
Ultra Librarian 3D Model Ultra Librarian G3T12AP CAD Model

Description

The NKK Switches G3T12AP toggle switch from NKK Switches is a SPDT switch with an On-On switch function.

  • Manufacturer: NKK Switches
  • Switch Type: SPDT
  • Switch Function: On-On
  • Voltage Rating: 28 V AC/DC
  • Current Rating: 0.4 VA (AC/DC)
  • Actuator Type: standard round
  • Actuator Length: 3.81mm
  • Mounting: SMD (SMT)
  • Termination Style: gull wing
  • Process Sealed: yes
  • Illumination: None
  • Bushing Thread: unthreaded
  • Temperature Range: -30°C to 85°C
  • Electrical Life: 50,000 cycles
  • Standard Package: 1
  • ECCN: EAR99
  • REACH: unaffected
