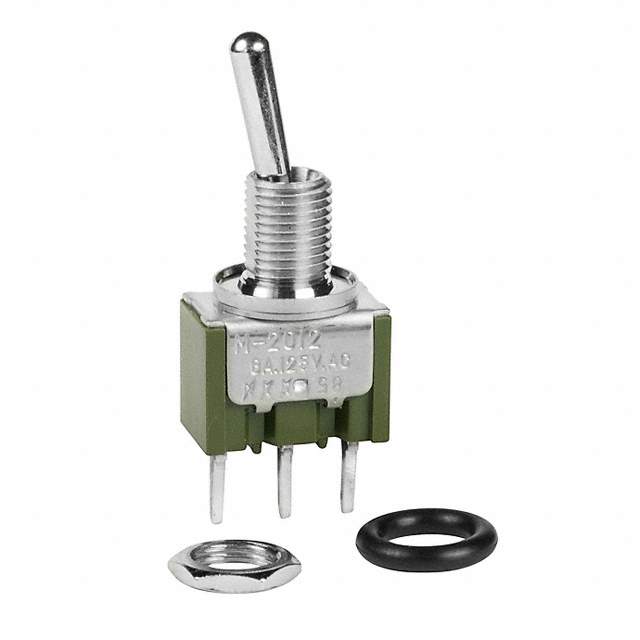

M2012SD3W03 Real Image
Same model may have multiple batches, images only for reference.

M2012SD3W03

Part No M2012SD3W03
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 10.50mm
Illumination Non-Illuminated
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2012SD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -M2012SD3W03
Standard Package 1
Win Source Part Number 1215977-M2012SD3W03
Ultra Librarian 3D Model Ultra Librarian M2012SD3W03 CAD Model

Description

The M series toggle switch from NKK Switches is an SPDT circuit switch with an on-on switch function.

  • Circuit: SPDT
  • Switch Function: On-On
  • Actuator Type: Standard Round
  • Actuator Material: Brass, Chrome Plated
  • Voltage Rating: 125V (AC), 30V (DC)
  • Current Rating: 6A (AC), 4A (DC)
  • Termination Style: PC Pin
  • Terminals: Epoxy Sealed
  • Panel Cutout Dimension: 6.50mm dia
  • Mounting Type: Panel Mount
  • Mechanical Life: 25,000 cycles
  • Illumination: Non-Illuminated
  • Operating Temperature: -30°C to 85°C
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Series: M
  • Packaging: Bulk
