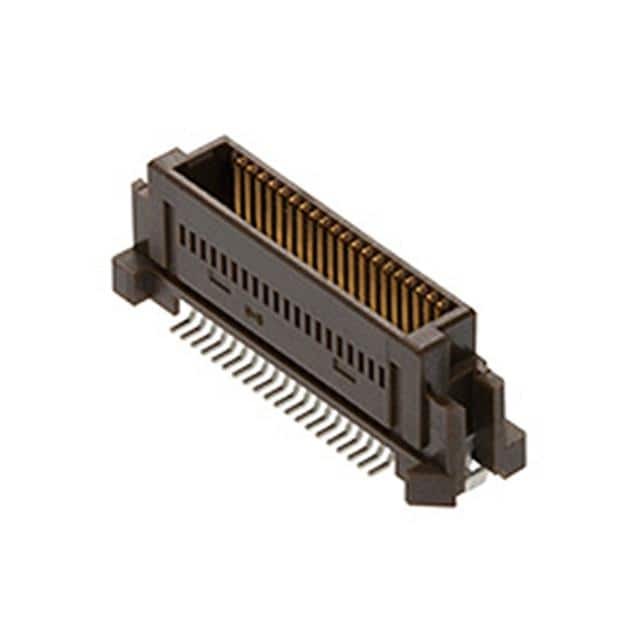

53647-1474 Molex, LLC
Same model may have multiple batches, images only for reference.

53647-1474

Part No 53647-1474
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 0.635 BTB HSG COVER ASSY EMBSTPP / Position Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series *
Package Box
Product Status Active
Standard Package 1 pcs
MSL Level Vendor Undefined
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1039179-53647-1474
Ultra Librarian 3D Model Ultra Librarian 53647-1474 CAD Model

Description

The 1039179-53647-1474 is a rectangular connector array designed for board-to-board and mezzanine applications. It is part of the Molex series and comes in a box package.

  • Standard Package: 1 piece
  • ECCN: EAR99
