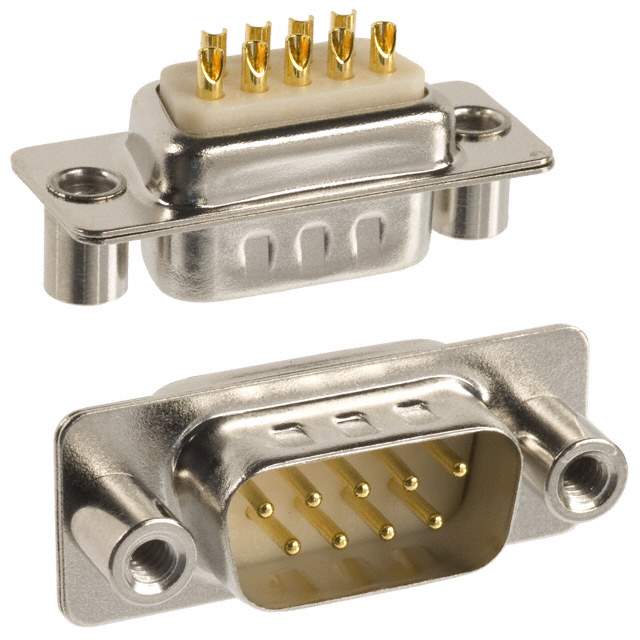

172-E09-103R031 Real Image
Same model may have multiple batches, images only for reference.

172-E09-103R031

Part No 172-E09-103R031
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS PNL MNT / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
172-E09-103R031 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 172-E, M Series
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side (4-40)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Grounding Indents
Color White
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Wire Gauge 20-26 AWG
Contact Material Brass
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 172-E09
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1342294-172-E09-103R031
Ultra Librarian 3D Model Ultra Librarian 172-E09-103R031 CAD Model

Description

The NorComp Inc. 172-E09-103R031 is a D-Sub connector assembly with a plug connector type and male pins. Bold text is added to NorComp Inc..

  • Connector Type: Plug
  • Pin Gender: Male
  • Number of Positions: 9
  • Number of Rows: 2
  • Termination Style: Solder Cup
  • Contact Finish: Gold (Flash Thickness)
  • Connector Material: Steel (Nickel Plated)
  • Current Rating: 5A
  • Temperature Range: -50°C to 100°C
  • Mating Side Feature: Flange
  • Shell Size: 1 (DE, E)
