Same model may have multiple batches, images only for reference.

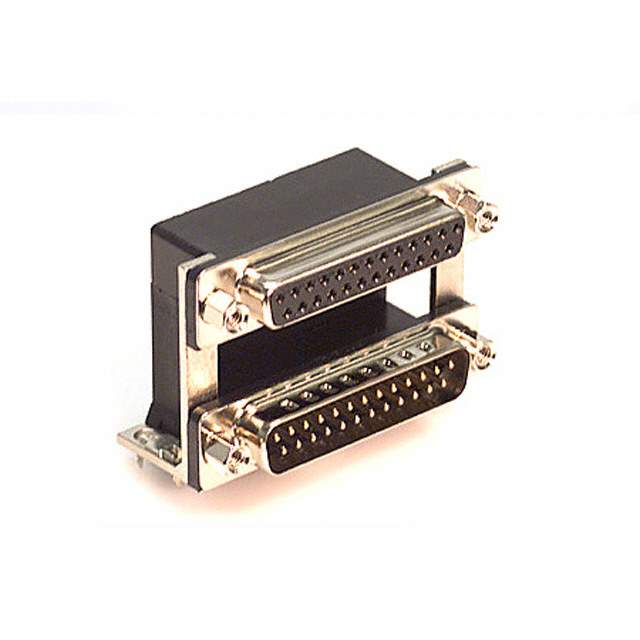

179-025-313R571 Real Image
Same model may have multiple batches, images only for reference.

179-025-313R571

Part No 179-025-313R571
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG/RCPT 25P RA SLDR / 25, 25 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
Datasheet
179-025-313R571 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 179
Package Tray
Connector Style D-Sub - Stacked
Connector Type Plug, Male Pins; Receptacle, Female Sockets
Number of Positions 25, 25
Number of Rows 2, 2
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B) ; 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Grounding Indents, Shielded
Color Black
Contact Form Stamped
Dielectric Material Polyamide (PA9T) , Nylon 9T
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 179-025
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340494-179-025-313R571
Ultra Librarian 3D Model Ultra Librarian 179-025-313R571 CAD Model

Description

The 1340494-179-025-313R571 connector assembly from NorComp Inc. is a D-Sub connector that features 25 positions and a black color. NorComp Inc..

  • Positions: 25
  • Color: Black
  • Board Lock: Yes
  • Grounding Indents: Yes
  • Shielded: Yes
  • Connector Type: Plug Male Pins and Receptacle Female Sockets
  • Contact Type: Signal
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Package: Tray
  • Contact Form: Stamped
  • Contact Material: Brass
  • Connector Style: D-Sub Stacked
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 20
  • Flange Feature: Mating Side and Female Screwlock (4-40)
  • Shell Material: Steel with Nickel-Plated Finish
  • Dielectric Material: Polyamide (PA9T) and Nylon 9T
  • Shell Size/Connector Layout: 3 (DB, B)
  • Mounting Type: Board Edge, Through Hole, and Right Angle
  • Operating Temperature: -55°C to 105°C
