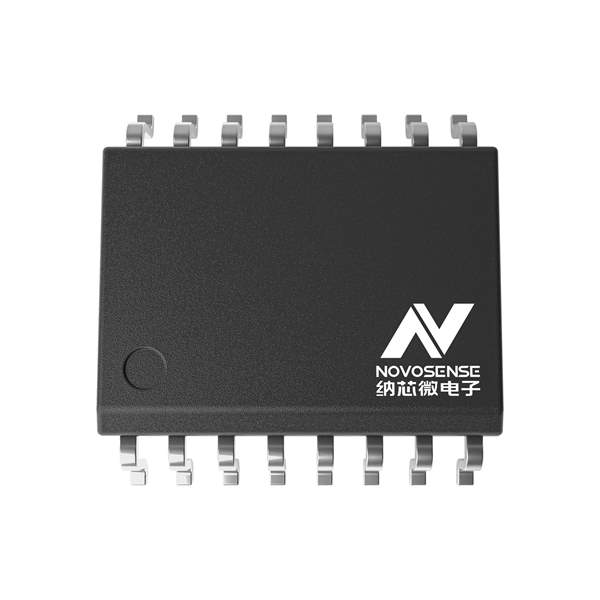

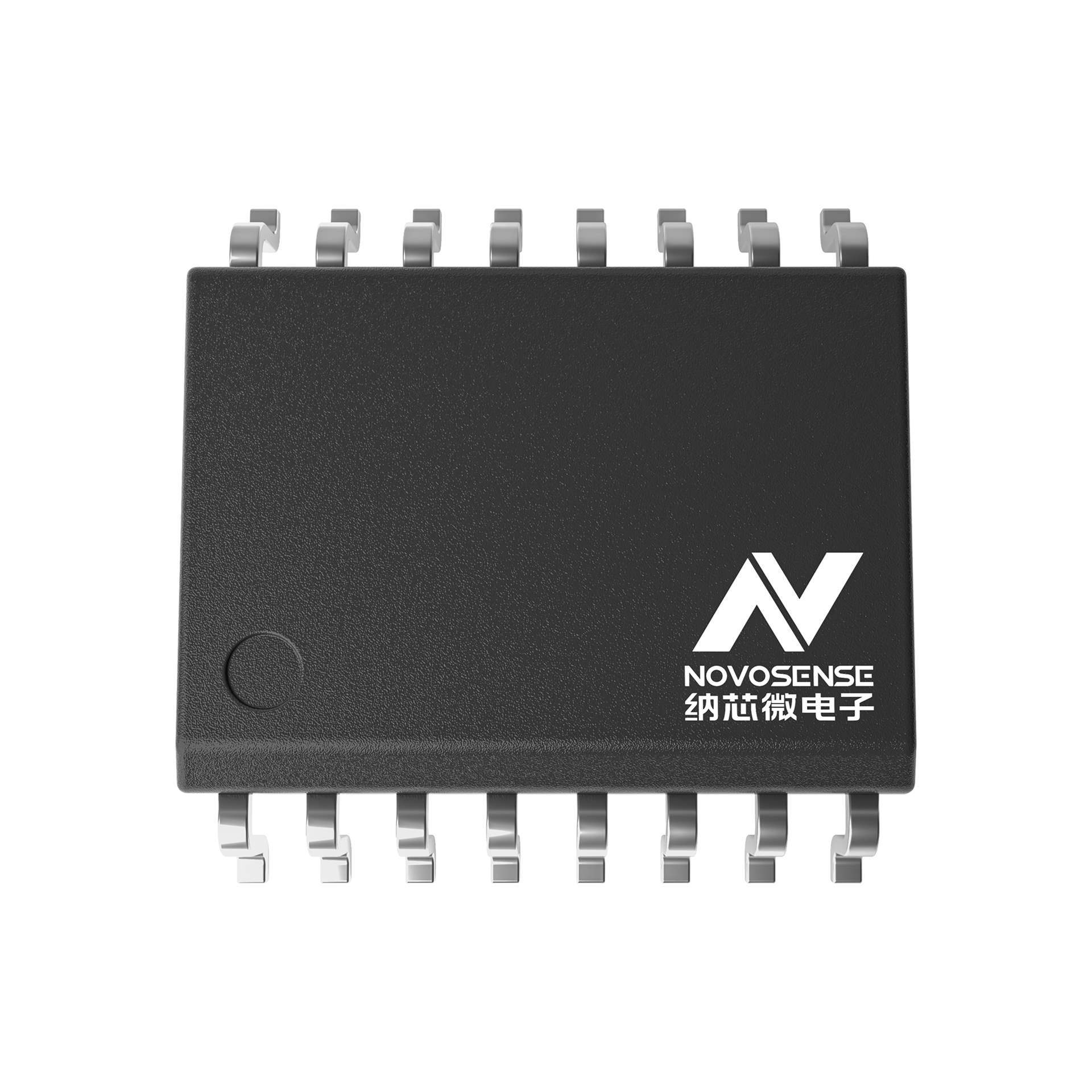

NSIP8941W1-DSWR NOVOSENSE
Same model may have multiple batches, images only for reference.

NSIP8941W1-DSWR

Part No NSIP8941W1-DSWR
Manufacturer NOVATEK
Catalog Digital Isolators
Description DIGITAL ISOLATORS WITH ISO POWER
Datasheet
NSIP8941W1-DSWR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306455-NSIP8941W1-DSWR
Category Isolators Digital Isolators
Mfr NOVOSENSE
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Technology Capacitive Coupling
Type General Purpose
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 150kV/µs
Data Rate 150Mbps
Propagation Delay tpLH / tpHL (Max) 15ns, 15ns
Ultra Librarian 3D Model Ultra Librarian NSIP8941W1-DSWR CAD Model

Description

  • Up to 4500Vrms Insulation voltage
  • Power supply voltage: 3.3V to 5.5V
  • 5V to 5V, 5V to 3.3V, support 100mA load current
  • 3.3V to 3.3V, support 60mA load current
  • Over current and over temperature protection
  • Date rate: DC to 150Mbps
  • High CMTI: 150kV/us
  • Propagation delay: <15ns
  • High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity
  • Operation temperature: -40℃~125℃
  • RoHS-compliant packages: SOW16
