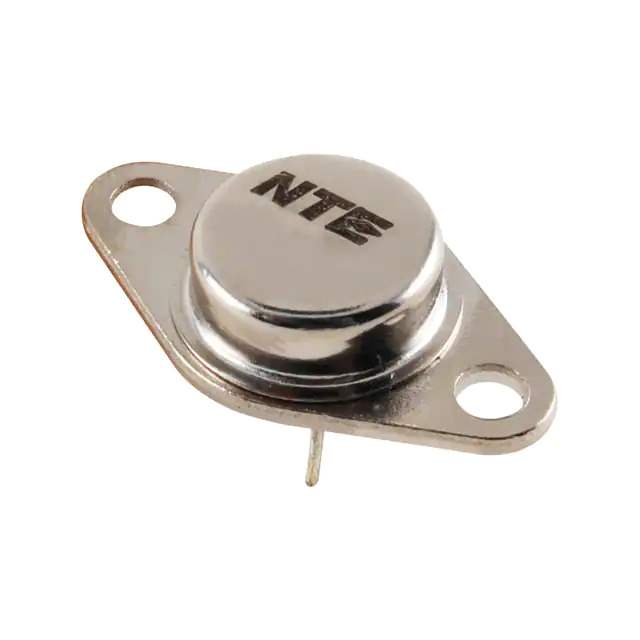

2N3054 Real Image
Same model may have multiple batches, images only for reference.

2N3054

Part No 2N3054
Manufacturer NTE
Catalog Transistors (BJT) - Single
Description TRANS NPN 55V 4A TO66
Datasheet
2N3054 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr NTE
Package Bag
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 4 A
Voltage - Collector Emitter Breakdown (Max) 55 V
Vce Saturation (Max) @ Ib, Ic 6V @ 1A, 3A
Current - Collector Cutoff (Max) 5mA
DC Current Gain (hFE) (Min) @ Ic, Vce 25 @ 500mA, 4V
Power - Max 25 W
Frequency - Transition 3MHz
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Through Hole
Package / Case TO-213AA, TO-66-2
Supplier Device Package TO-66
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 541005-2N3054
Ultra Librarian 3D Model Ultra Librarian 2N3054 CAD Model

Description

The 541005-2N3054 is a single bipolar transistor in the NPN transistor type.

  • Application: Discrete semiconductor products, specifically in transistors
  • Power: 25 W
  • Voltage Breakdown (Collector to Emitter): 55 V
  • Collector Current: 4 A
  • Vce Saturation: 6V @ 1A and 3A
  • Cutoff Current: 5mA
  • DC Current Gain (hFE): 25 @ 500mA and 4V
  • Transition Frequency: 3MHz
  • Mounting: Through-hole
  • Package: TO-213AA and TO-66-2
  • Operating Temperature: -65°C to 200°C
  • Manufacturer: NTE
