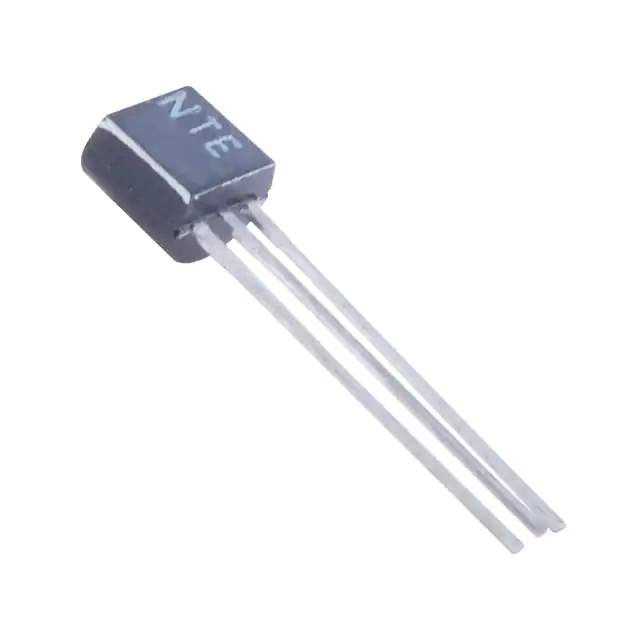

NTE159

Name: NTE159
Brand: NTE
SKU: 887763
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NTE159
Manufacturer	NTE
Catalog	Transistors (BJT) - Single
Description	TRANS PNP 80V 0.8A TO92
Datasheet	NTE159 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr	NTE
Package	Bag
Product Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	800 mA
Voltage - Collector Emitter Breakdown (Max)	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 10mA, 10V
Power - Max	625 mW
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
Standard Package	1 pcs
ECCN	EAR99
HTSUS	8541.21.0095
Win Source Part Number	887763-NTE159
Ultra Librarian 3D Model	Ultra Librarian NTE159 CAD Model

Alternative Products

Description

The NTE159 is a PNP Bipolar Transistor designed for general purpose amplifier and switching applications.

Collector Current (Ic): 800 mA
Collector-Emitter Voltage (Vce) Breakdown: 80 V
Power Dissipation: 625 mW
DC Current Gain (hFE): 50 @ a collector current (Ic) of 10 mA and collector-emitter voltage (Vce) of 10 V
Vce Saturation: 500mV @ a base current (Ib) of 50mA and a collector current (Ic) of 500mA
Package: TO-92
Operating Temperature: -55°C to 150°C
