Same model may have multiple batches, images only for reference.

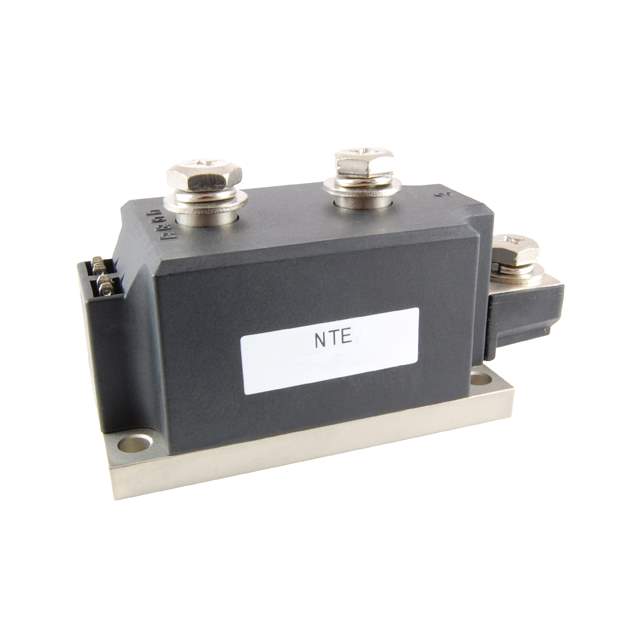

NTE6238 Real Image
Same model may have multiple batches, images only for reference.

NTE6238

Part No NTE6238
Manufacturer NTE
Catalog Diodes, Rectifiers - Arrays
Description RECT-MODULE 1600V 320 AMP / Diode Array 1 Pair Series Connection Standard 320A Chassis Mount Module
Datasheet
NTE6238 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr NTE Electronics, Inc
Package Bag
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Current - Average Rectified (Io) (per Diode) 320A
Voltage - Forward (Vf) (Max) @ If 1.28 V @ 1000 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 1600 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2368-NTE6238
Standard Package 1
Win Source Part Number 1153834-NTE6238
Ultra Librarian 3D Model Ultra Librarian NTE6238 CAD Model

Description

The NTE6238 is a standard recovery diode that is designed to provide reliable and efficient performance.

  • Current Rating: 320A
  • Voltage Forward: 1.28V @ 1000A
  • Reverse Leakage Current @ VR: 50 µA @ 1600V
