Same model may have multiple batches, images only for reference.

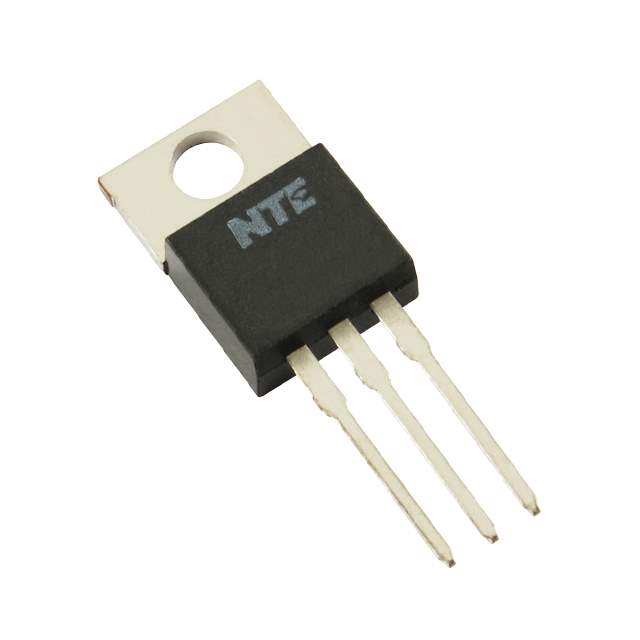

NTE958 Real Image
Same model may have multiple batches, images only for reference.

NTE958

Part No NTE958
Manufacturer NTE
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 18V 1A TO220  /  Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220
Datasheet
NTE958 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr NTE Electronics, Inc
Package Bag
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 35V
Voltage - Output (Min/Fixed) 18V
Voltage Dropout (Max) 2V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 8 mA
PSRR 57dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8542.31.0000
Other Names 2368-NTE958
Standard Package 1
Win Source Part Number 980868-NTE958
Ultra Librarian 3D Model Ultra Librarian NTE958 CAD Model

Description

The NTE958 is an integrated circuit voltage regulator with a fixed output configuration.

  • Output Current: 1A
  • Voltage Input (up to): 35V
  • Voltage Output: Fixed @ 18V
  • Maximum Dropout Voltage: 2V @ 1A
  • Mounting: TO-220-3
  • Protection Features: Overcurrent and Overtemperature
  • PSRR: 57dB @ 120Hz
  • Quiescent Current: 8mA
  • Manufacturer: NTE Electronics, Inc
  • RoHS Compliance: Non-Compliant
