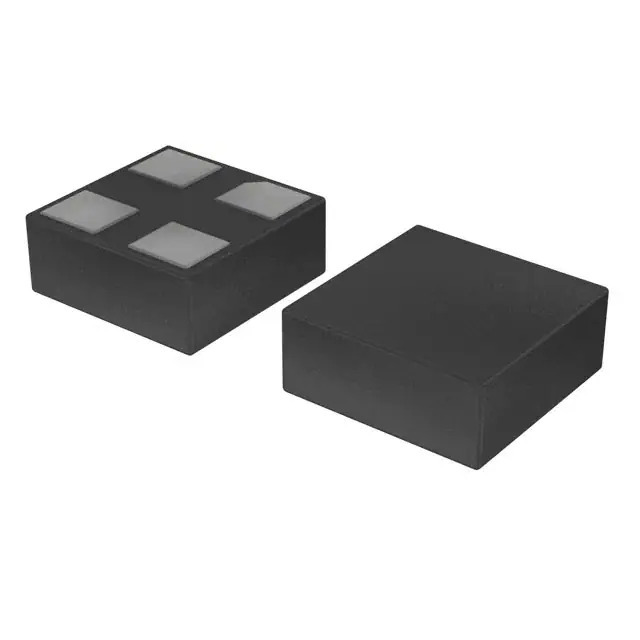

ADL021-14E

Name: ADL021-14E
Brand: NVE Corp
SKU: 1375844
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ADL021-14E
Manufacturer	NVE Corp
Catalog	Magnetic Sensors - Switches (Solid State)
Description	MAGNETIC SWITCH LATCH 4ULLGA
Datasheet	ADL021-14E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers - Magnetic Sensors - Switches (Solid State)
Mfr	NVE Corp/Sensor Products
Series	ADL
Product Status	Active
Function	Latch
Technology	Magnetoresistive
Polarization	North Pole, South Pole
Sensing Range	2.5mT Trip, 1.3mT Release
Test Condition	-40°C ~ 125°C
Voltage - Supply	2.4V ~ 3.6V
Current - Supply (Max)	350nA
Current - Output (Max)	200µA
Output Type	Open Collector
Features	-
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	4-ULLGA (1.1x1.1)
Package / Case	4-XFLGA
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1375844-ADL021-14E
Ultra Librarian 3D Model	Ultra Librarian ADL021-14E CAD Model

Alternative Products

Description

The NVE Corp/Sensor Products ADL021-14E is a solid-state magnetic sensor switch designed for latch applications.

Temperature Range: -40°C to 125°C
Series: ADL
Technology: Magnetoresistive
Package/Case: 4-XFLGA
Voltage Range: 2.4V to 3.6V
Sensing Range (Trip): 2.5mT
Sensing Range (Release): 1.3mT
Package: 4-ULLGA
